Element ItemEntry
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_LineFunctione-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_LineItemNume-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_SellerItemCodee-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_GTINe-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_AlternateGTINe-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ManufacturerItemCodee-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_BuyerItemCodee-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_TarifCodee-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ReplacementItemGTINe-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_BOMIDe-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ItemGTINe-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ParentIteme-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ParentItemGTINe-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_CampaignCodee-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ItemDescriptione-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ItemTypee-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ItemGroupCodee-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_PublicIteme-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ItemInfoe-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ItemRegistrationInfoe-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ItemUnitRecorde-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_BaseUnite-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_SalesUnite-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_TransportUnite-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_DistributionUnite-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_AmountInParentIteme-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_IndicatedAmountInPackagee-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ItemNumeratore-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ItemDenumeratore-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_AmountDespatchede-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_AmountOfferede-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_AmountOrderede-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_AmountInvoicede-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_AmountActuale-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_AmountAcceptede-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_AmountOnShelfe-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_AmountInStocke-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_AmountSolde-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_AmountOutOfStocke-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_AmountConsignmente-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_AmountToReturne-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_Facee-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ItemPricee-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ItemBasePricee-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ItemModifiedPricee-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_Currencye-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ItemSume-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_Additione-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_VATe-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ItemTotale-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ValidityDatee-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_StartValidityDatee-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_EndValidityDatee-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_BestBeforee-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_BestBeforeMine-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_BestBeforeMaxe-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_SerialNume-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ItemStatuse-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_Accountinge-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_CustomerRefe-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_MovementTypeCodee-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ReasonCodee-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_DecisionCodee-document-3_1_11_xsd_Element_ItemParties.tmp#ItemPartiese-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_DateInfoe-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_RefInfoe-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_Locatione-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ItemReservee-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ItemStatee-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_AdditionalInfoe-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_Attachmentse-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_ItemAdditionalClassificationse-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_TargetMarketse-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_QuantityDifferencese-document-3_1_11_xsd_Element_ItemEntry.tmp#ItemEntry_MonetaryAmounts
Properties
content complex
Used by
Element DocumentItem
Model
LineFunction{0,1} , LineItemNum{0,1} , SellerItemCode{0,1} , GTIN{0,1} , AlternateGTIN* , ManufacturerItemCode{0,1} , BuyerItemCode{0,1} , TarifCode{0,1} , ReplacementItemGTIN{0,1} , BOMID{0,1} , ItemGTIN{0,1} , ParentItem{0,1} , ParentItemGTIN{0,1} , CampaignCode{0,1} , ItemDescription* , ItemType{0,1} , ItemGroupCode{0,1} , PublicItem{0,1} , ItemInfo{0,1} , ItemRegistrationInfo{0,1} , ItemUnitRecord* , BaseUnit{0,1} , SalesUnit{0,1} , TransportUnit{0,1} , DistributionUnit{0,1} , AmountInParentItem{0,1} , IndicatedAmountInPackage{0,1} , ItemNumerator{0,1} , ItemDenumerator{0,1} , AmountDespatched{0,1} , AmountOffered{0,1} , AmountOrdered{0,1} , AmountInvoiced{0,1} , AmountActual{0,1} , AmountAccepted{0,1} , AmountOnShelf{0,1} , AmountInStock{0,1} , AmountSold{0,1} , AmountOutOfStock{0,1} , AmountConsignment{0,1} , AmountToReturn{0,1} , Face{0,1} , ItemPrice{0,1} , ItemBasePrice{0,1} , ItemModifiedPrice{0,1} , Currency{0,1} , ItemSum{0,1} , Addition* , VAT{0,1} , ItemTotal{0,1} , ValidityDate{0,1} , StartValidityDate{0,1} , EndValidityDate{0,1} , BestBefore{0,1} , BestBeforeMin{0,1} , BestBeforeMax{0,1} , SerialNum{0,1} , ItemStatus{0,1} , Accounting{0,1} , CustomerRef{0,1} , MovementTypeCode{0,1} , ReasonCode{0,1} , DecisionCode{0,1} , ItemParties{0,1} , DateInfo{0,1} , RefInfo{0,1} , Location{0,1} , ItemReserve* , ItemState{0,1} , AdditionalInfo{0,1} , Attachments{0,1} , ItemAdditionalClassifications{0,1} , TargetMarkets{0,1} , QuantityDifferences{0,1} , MonetaryAmounts{0,1}
Children Accounting, Addition, AdditionalInfo, AlternateGTIN, AmountAccepted, AmountActual, AmountConsignment, AmountDespatched, AmountInParentItem, AmountInStock, AmountInvoiced, AmountOffered, AmountOnShelf, AmountOrdered, AmountOutOfStock, AmountSold, AmountToReturn, Attachments, BOMID, BaseUnit, BestBefore, BestBeforeMax, BestBeforeMin, BuyerItemCode, CampaignCode, Currency, CustomerRef, DateInfo, DecisionCode, DistributionUnit, EndValidityDate, Face, GTIN, IndicatedAmountInPackage, ItemAdditionalClassifications, ItemBasePrice, ItemDenumerator, ItemDescription, ItemGTIN, ItemGroupCode, ItemInfo, ItemModifiedPrice, ItemNumerator, ItemParties, ItemPrice, ItemRegistrationInfo, ItemReserve, ItemState, ItemStatus, ItemSum, ItemTotal, ItemType, ItemUnitRecord, LineFunction, LineItemNum, Location, ManufacturerItemCode, MonetaryAmounts, MovementTypeCode, ParentItem, ParentItemGTIN, PublicItem, QuantityDifferences, ReasonCode, RefInfo, ReplacementItemGTIN, SalesUnit, SellerItemCode, SerialNum, StartValidityDate, TargetMarkets, TarifCode, TransportUnit, VAT, ValidityDate
Instance

<ItemEntry>
  <LineFunction>{0,1}</LineFunction>
  <LineItemNum>{0,1}</LineItemNum>
  <SellerItemCode>{0,1}</SellerItemCode>
  <GTIN>{0,1}</GTIN>
  <AlternateGTIN>{0,unbounded}</AlternateGTIN>
  <ManufacturerItemCode>{0,1}</ManufacturerItemCode>
  <BuyerItemCode>{0,1}</BuyerItemCode>
  <TarifCode>{0,1}</TarifCode>
  <ReplacementItemGTIN>{0,1}</ReplacementItemGTIN>
  <BOMID>{0,1}</BOMID>
  <ItemGTIN>{0,1}</ItemGTIN>
  <ParentItem>{0,1}</ParentItem>
  <ParentItemGTIN>{0,1}</ParentItemGTIN>
  <CampaignCode>{0,1}</CampaignCode>

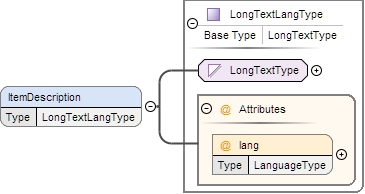

  <ItemDescription lang="">{0,unbounded}</ItemDescription>
  <ItemType>{0,1}</ItemType>
  <ItemGroupCode>{0,1}</ItemGroupCode>
  <PublicItem>{0,1}</PublicItem>
  <ItemInfo>{0,1}</ItemInfo>
  <ItemRegistrationInfo>{0,1}</ItemRegistrationInfo>

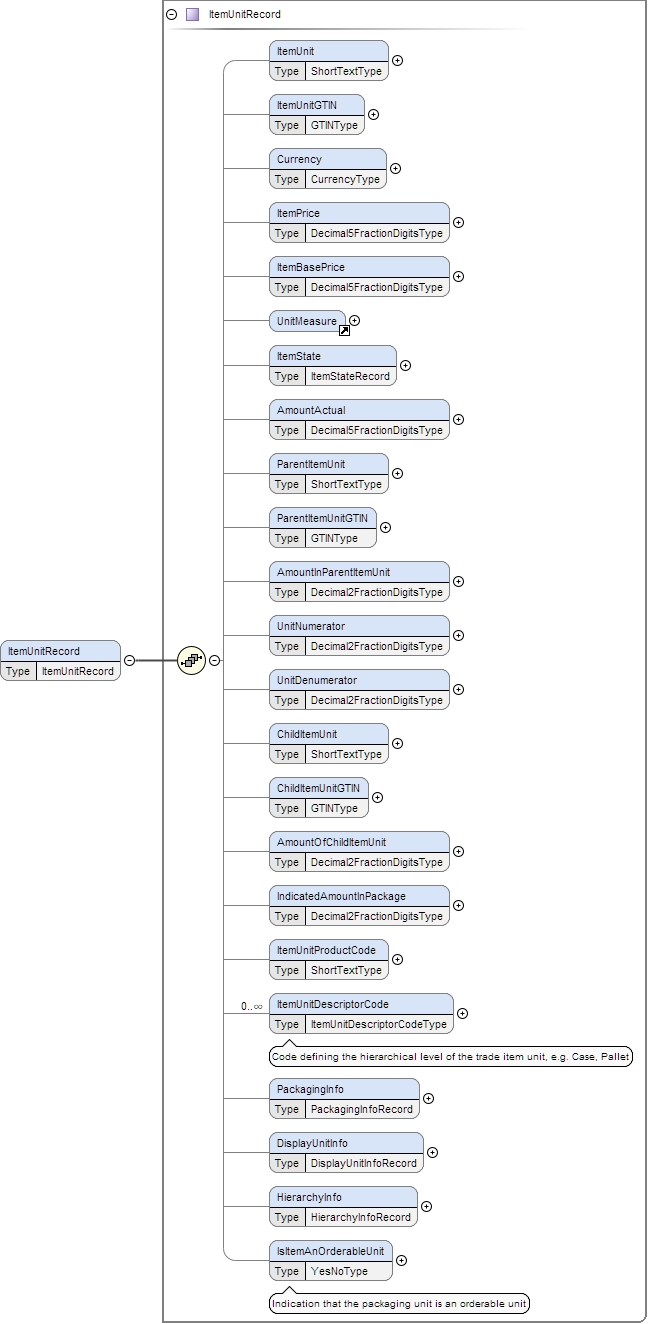

  <ItemUnitRecord>{0,unbounded}</ItemUnitRecord>
  <BaseUnit>{0,1}</BaseUnit>
  <SalesUnit>{0,1}</SalesUnit>
  <TransportUnit>{0,1}</TransportUnit>
  <DistributionUnit>{0,1}</DistributionUnit>
  <AmountInParentItem>{0,1}</AmountInParentItem>
  <IndicatedAmountInPackage>{0,1}</IndicatedAmountInPackage>
  <ItemNumerator>{0,1}</ItemNumerator>
  <ItemDenumerator>{0,1}</ItemDenumerator>
  <AmountDespatched>{0,1}</AmountDespatched>
  <AmountOffered>{0,1}</AmountOffered>
  <AmountOrdered>{0,1}</AmountOrdered>
  <AmountInvoiced>{0,1}</AmountInvoiced>
  <AmountActual>{0,1}</AmountActual>
  <AmountAccepted>{0,1}</AmountAccepted>
  <AmountOnShelf>{0,1}</AmountOnShelf>
  <AmountInStock>{0,1}</AmountInStock>
  <AmountSold>{0,1}</AmountSold>
  <AmountOutOfStock>{0,1}</AmountOutOfStock>
  <AmountConsignment>{0,1}</AmountConsignment>
  <AmountToReturn>{0,1}</AmountToReturn>
  <Face>{0,1}</Face>
  <ItemPrice>{0,1}</ItemPrice>
  <ItemBasePrice>{0,1}</ItemBasePrice>
  <ItemModifiedPrice>{0,1}</ItemModifiedPrice>
  <Currency>{0,1}</Currency>
  <ItemSum>{0,1}</ItemSum>

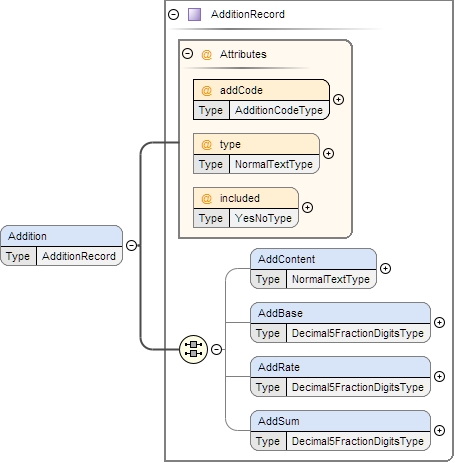

  <Addition addCode="" included="" type="">{0,unbounded}</Addition>

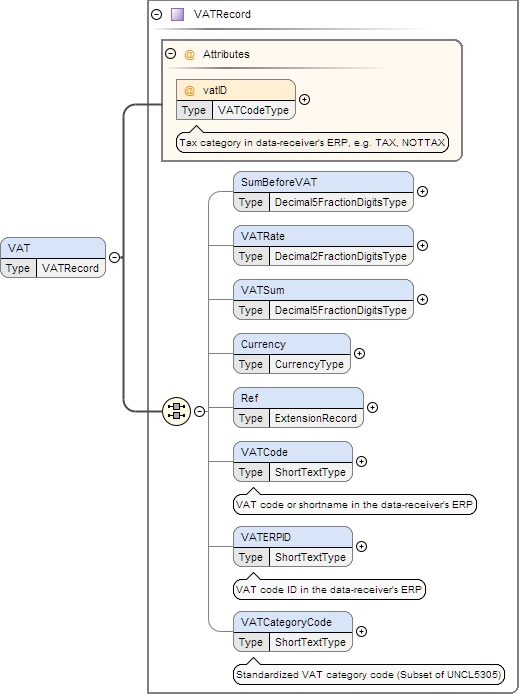

  <VAT vatID="">{0,1}</VAT>
  <ItemTotal>{0,1}</ItemTotal>
  <ValidityDate>{0,1}</ValidityDate>
  <StartValidityDate>{0,1}</StartValidityDate>
  <EndValidityDate>{0,1}</EndValidityDate>
  <BestBefore>{0,1}</BestBefore>
  <BestBeforeMin>{0,1}</BestBeforeMin>
  <BestBeforeMax>{0,1}</BestBeforeMax>
  <SerialNum>{0,1}</SerialNum>
  <ItemStatus>{0,1}</ItemStatus>

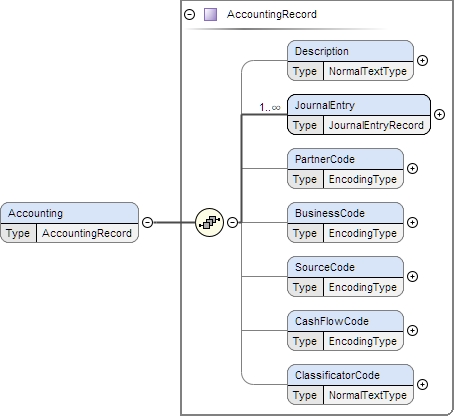

  <Accounting>{0,1}</Accounting>
  <CustomerRef>{0,1}</CustomerRef>
  <MovementTypeCode>{0,1}</MovementTypeCode>
  <ReasonCode>{0,1}</ReasonCode>
  <DecisionCode>{0,1}</DecisionCode>
  <ItemParties>{0,1}</ItemParties>

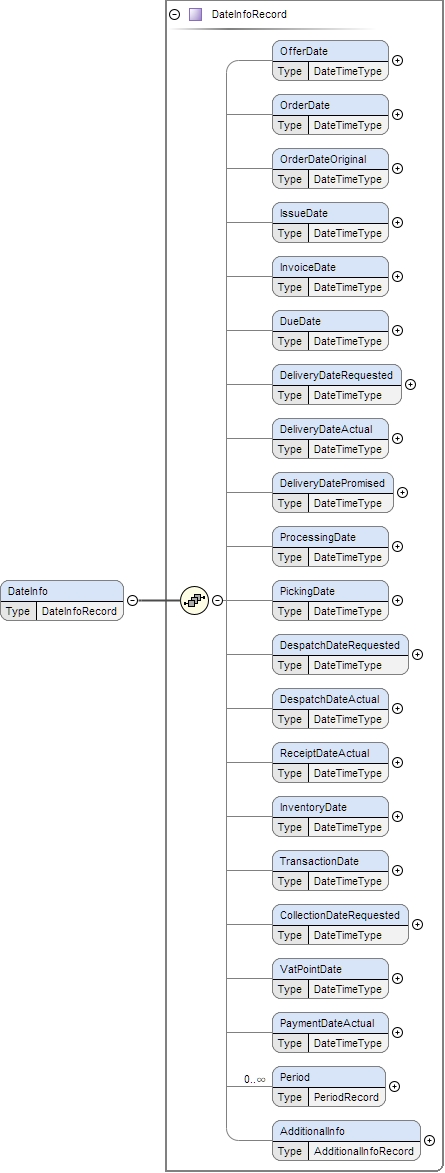

  <DateInfo>{0,1}</DateInfo>

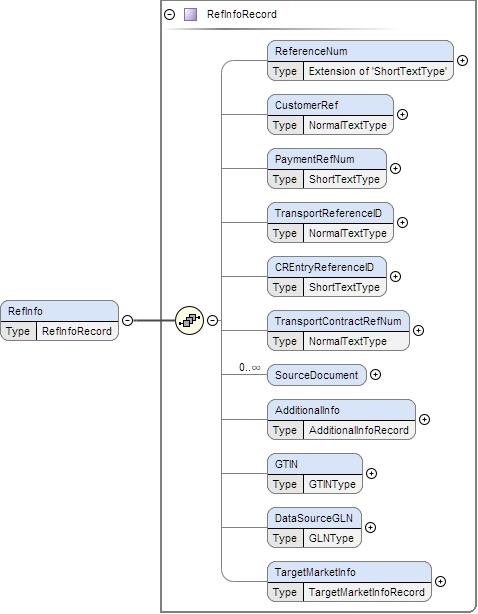

  <RefInfo>{0,1}</RefInfo>

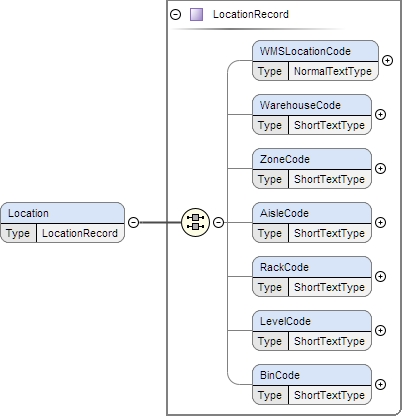

  <Location>{0,1}</Location>
  <ItemReserve>{0,unbounded}</ItemReserve>

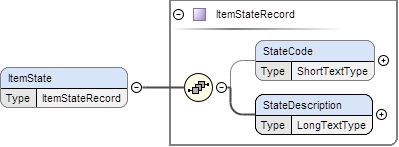

  <ItemState>{0,1}</ItemState>
  <AdditionalInfo>{0,1}</AdditionalInfo>
  <Attachments>{0,1}</Attachments>
  <ItemAdditionalClassifications>{0,1}</ItemAdditionalClassifications>

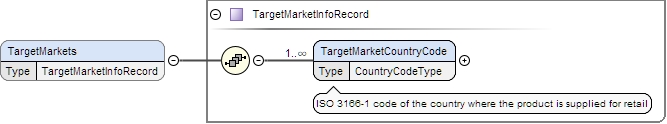

  <TargetMarkets>{0,1}</TargetMarkets>

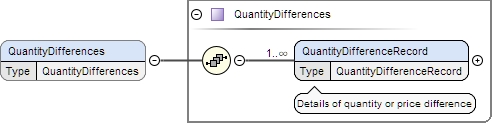

  <QuantityDifferences>{0,1}</QuantityDifferences>

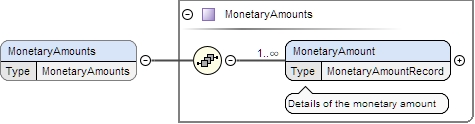

  <MonetaryAmounts>{0,1}</MonetaryAmounts>
</ItemEntry>
Source

<xs:element name="ItemEntry">
  <xs:complexType>
    <xs:sequence>
      <xs:element minOccurs="0" name="LineFunction" type="LineFunctionCode"/>
      <xs:element minOccurs="0" name="LineItemNum" type="ShortTextType"/>
      <xs:element minOccurs="0" name="SellerItemCode" type="ShortTextType"/>
      <xs:element minOccurs="0" name="GTIN" type="GTINType"/>
      <xs:element minOccurs="0" maxOccurs="unbounded" name="AlternateGTIN" type="GTINType"/>
      <xs:element minOccurs="0" name="ManufacturerItemCode" type="NormalTextType"/>
      <xs:element minOccurs="0" name="BuyerItemCode" type="ShortTextType"/>
      <xs:element minOccurs="0" name="TarifCode" type="EncodingType"/>
      <xs:element minOccurs="0" name="ReplacementItemGTIN" type="GTINType"/>
      <xs:element minOccurs="0" name="BOMID" type="NormalTextType"/>
      <xs:element minOccurs="0" name="ItemGTIN" type="GTINType"/>
      <xs:element minOccurs="0" name="ParentItem" type="ShortTextType"/>
      <xs:element minOccurs="0" name="ParentItemGTIN" type="GTINType"/>
      <xs:element minOccurs="0" name="CampaignCode" type="NormalTextType"/>
      <xs:element minOccurs="0" maxOccurs="unbounded" name="ItemDescription" type="LongTextLangType"/>
      <xs:element minOccurs="0" name="ItemType" type="NormalTextType"/>
      <xs:element minOccurs="0" name="ItemGroupCode" type="NormalTextType"/>
      <xs:element minOccurs="0" name="PublicItem" type="ShortTextType"/>
      <xs:element minOccurs="0" name="ItemInfo" type="ItemInfoRecord"/>
      <xs:element minOccurs="0" name="ItemRegistrationInfo" type="ItemRegistrationRecord"/>
      <xs:element minOccurs="0" maxOccurs="unbounded" name="ItemUnitRecord" type="ItemUnitRecord"/>
      <xs:element minOccurs="0" name="BaseUnit" type="ShortTextType"/>
      <xs:element minOccurs="0" name="SalesUnit" type="ShortTextType"/>
      <xs:element minOccurs="0" name="TransportUnit" type="ShortTextType"/>
      <xs:element minOccurs="0" name="DistributionUnit" type="ShortTextType"/>
      <xs:element minOccurs="0" name="AmountInParentItem" type="Decimal2FractionDigitsType"/>
      <xs:element minOccurs="0" name="IndicatedAmountInPackage" type="Decimal2FractionDigitsType"/>
      <xs:element minOccurs="0" name="ItemNumerator" type="Decimal2FractionDigitsType"/>
      <xs:element minOccurs="0" name="ItemDenumerator" type="Decimal2FractionDigitsType"/>
      <xs:element minOccurs="0" name="AmountDespatched" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" name="AmountOffered" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" name="AmountOrdered" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" name="AmountInvoiced" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" name="AmountActual" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" name="AmountAccepted" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" name="AmountOnShelf" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" name="AmountInStock" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" name="AmountSold" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" name="AmountOutOfStock" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" name="AmountConsignment" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" name="AmountToReturn" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" name="Face" type="PositiveNumType"/>
      <xs:element minOccurs="0" name="ItemPrice" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" name="ItemBasePrice" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" name="ItemModifiedPrice" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" name="Currency" type="CurrencyType"/>
      <xs:element minOccurs="0" name="ItemSum" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" maxOccurs="unbounded" name="Addition" type="AdditionRecord"/>
      <xs:element minOccurs="0" name="VAT" type="VATRecord"/>
      <xs:element minOccurs="0" name="ItemTotal" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" name="ValidityDate" type="DateTimeType"/>
      <xs:element minOccurs="0" name="StartValidityDate" type="DateTimeType"/>
      <xs:element minOccurs="0" name="EndValidityDate" type="DateTimeType"/>
      <xs:element minOccurs="0" name="BestBefore" type="DateTimeType"/>
      <xs:element minOccurs="0" name="BestBeforeMin" type="DateTimeType"/>
      <xs:element minOccurs="0" name="BestBeforeMax" type="DateTimeType"/>
      <xs:element minOccurs="0" name="SerialNum" type="ShortTextType"/>
      <xs:element minOccurs="0" name="ItemStatus" type="NormalTextType"/>
      <xs:element minOccurs="0" name="Accounting" type="AccountingRecord"/>
      <xs:element minOccurs="0" name="CustomerRef" type="NormalTextType"/>
      <xs:element minOccurs="0" name="MovementTypeCode" type="ShortTextType"/>
      <xs:element minOccurs="0" name="ReasonCode" type="ShortTextType"/>
      <xs:element minOccurs="0" name="DecisionCode" type="ShortTextType"/>
      <xs:element minOccurs="0" ref="ItemParties"/>
      <xs:element minOccurs="0" name="DateInfo" type="DateInfoRecord"/>
      <xs:element minOccurs="0" name="RefInfo" type="RefInfoRecord"/>
      <xs:element minOccurs="0" maxOccurs="1" name="Location" type="LocationRecord"/>
      <xs:element minOccurs="0" maxOccurs="unbounded" name="ItemReserve" type="ItemReserveRecord"/>
      <xs:element minOccurs="0" name="ItemState" type="ItemStateRecord"/>
      <xs:element minOccurs="0" name="AdditionalInfo" type="AdditionalInfoRecord"/>
      <xs:element minOccurs="0" name="Attachments" type="AttachmentRecord"/>
      <xs:element minOccurs="0" maxOccurs="1" name="ItemAdditionalClassifications" type="ItemAdditionalClassifications"/>
      <xs:element minOccurs="0" maxOccurs="1" name="TargetMarkets" type="TargetMarketInfoRecord"/>
      <xs:element minOccurs="0" name="QuantityDifferences" type="QuantityDifferences"/>
      <!-- 3.1.9: TO BE ADDED: START -->
      <xs:element minOccurs="0" name="MonetaryAmounts" type="MonetaryAmounts"/>
      <!-- 3.1.9: TO BE ADDED: END -->
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element ItemEntry / LineFunction
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_LineFunctionCode.tmp#LineFunctionCode
Type LineFunctionCode
Properties
content simple
minOccurs 0
Facets
pattern (update)|(delete)|(original)|(UPDATE)|(DELETE)|(ORIGINAL)|(Update)|(Delete)|(Original)
Source

<xs:element minOccurs="0" name="LineFunction" type="LineFunctionCode"/>
Element ItemEntry / LineItemNum
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
minOccurs 0
Facets
maxLength 50
Source

<xs:element minOccurs="0" name="LineItemNum" type="ShortTextType"/>
Element ItemEntry / SellerItemCode
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
minOccurs 0
Facets
maxLength 50
Source

<xs:element minOccurs="0" name="SellerItemCode" type="ShortTextType"/>
Element ItemEntry / GTIN
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_GTINType.tmp#GTINType
Type GTINType
Properties
content simple
minOccurs 0
Facets
minLength 0
maxLength 14
pattern \d*
Source

<xs:element minOccurs="0" name="GTIN" type="GTINType"/>
Element ItemEntry / AlternateGTIN
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_GTINType.tmp#GTINType
Type GTINType
Properties
content simple
minOccurs 0
maxOccurs unbounded
Facets
minLength 0
maxLength 14
pattern \d*
Source

<xs:element minOccurs="0" maxOccurs="unbounded" name="AlternateGTIN" type="GTINType"/>
Element ItemEntry / ManufacturerItemCode
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_NormalTextType.tmp#NormalTextType
Type NormalTextType
Properties
content simple
minOccurs 0
Facets
maxLength 100
Source

<xs:element minOccurs="0" name="ManufacturerItemCode" type="NormalTextType"/>
Element ItemEntry / BuyerItemCode
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
minOccurs 0
Facets
maxLength 50
Source

<xs:element minOccurs="0" name="BuyerItemCode" type="ShortTextType"/>
Element ItemEntry / TarifCode
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_EncodingType.tmp#EncodingType
Type EncodingType
Properties
content simple
minOccurs 0
Facets
maxLength 10
Source

<xs:element minOccurs="0" name="TarifCode" type="EncodingType"/>
Element ItemEntry / ReplacementItemGTIN
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_GTINType.tmp#GTINType
Type GTINType
Properties
content simple
minOccurs 0
Facets
minLength 0
maxLength 14
pattern \d*
Source

<xs:element minOccurs="0" name="ReplacementItemGTIN" type="GTINType"/>
Element ItemEntry / BOMID
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_NormalTextType.tmp#NormalTextType
Type NormalTextType
Properties
content simple
minOccurs 0
Facets
maxLength 100
Source

<xs:element minOccurs="0" name="BOMID" type="NormalTextType"/>
Element ItemEntry / ItemGTIN
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_GTINType.tmp#GTINType
Type GTINType
Properties
content simple
minOccurs 0
Facets
minLength 0
maxLength 14
pattern \d*
Source

<xs:element minOccurs="0" name="ItemGTIN" type="GTINType"/>
Element ItemEntry / ParentItem
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
minOccurs 0
Facets
maxLength 50
Source

<xs:element minOccurs="0" name="ParentItem" type="ShortTextType"/>
Element ItemEntry / ParentItemGTIN
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_GTINType.tmp#GTINType
Type GTINType
Properties
content simple
minOccurs 0
Facets
minLength 0
maxLength 14
pattern \d*
Source

<xs:element minOccurs="0" name="ParentItemGTIN" type="GTINType"/>
Element ItemEntry / CampaignCode
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_NormalTextType.tmp#NormalTextType
Type NormalTextType
Properties
content simple
minOccurs 0
Facets
maxLength 100
Source

<xs:element minOccurs="0" name="CampaignCode" type="NormalTextType"/>
Element ItemEntry / ItemDescription
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_LongTextType.tmp#LongTextTypee-document-3_1_11_xsd_Complex_Type_LongTextLangType.tmp#LongTextLangType_lange-document-3_1_11_xsd_Complex_Type_LongTextLangType.tmp#LongTextLangType
Type LongTextLangType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
lang LanguageType optional
Source

<xs:element minOccurs="0" maxOccurs="unbounded" name="ItemDescription" type="LongTextLangType"/>
Element ItemEntry / ItemType
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_NormalTextType.tmp#NormalTextType
Type NormalTextType
Properties
content simple
minOccurs 0
Facets
maxLength 100
Source

<xs:element minOccurs="0" name="ItemType" type="NormalTextType"/>
Element ItemEntry / ItemGroupCode
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_NormalTextType.tmp#NormalTextType
Type NormalTextType
Properties
content simple
minOccurs 0
Facets
maxLength 100
Source

<xs:element minOccurs="0" name="ItemGroupCode" type="NormalTextType"/>
Element ItemEntry / PublicItem
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
minOccurs 0
Facets
maxLength 50
Source

<xs:element minOccurs="0" name="PublicItem" type="ShortTextType"/>
Element ItemEntry / ItemInfo
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_Yeare-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_Modele-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_AlcoholContente-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_ItemDetailedDescriptione-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_Volumee-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_Manufacturere-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_BrandNamee-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_ClassOfItemse-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_ItemClassOfGoodse-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_TechnicalDescriptione-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_CountryOfOrigine-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_ItemPicturee-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_ExciseTaxGroupe-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_ExciseTaxSume-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_CNCodee-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_SalesUnitOfMeasuree-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_TransportUnitOfMeasuree-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_ItemTypee-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_ItemQualityClasse-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_ItemRecommendationse-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_ItemRegione-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_ItemSmelle-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_ItemSubregione-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_CompositionOfArticlese-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_ItemSugare-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_ItemTastee-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_ItemMaxRetailPricee-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_AdditionalInfoe-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_ItemDescriptionInfoe-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_ItemInstructionsInfoe-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_IngredientInfoe-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_NutritionalInfoe-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_PackagingMarkingInfoe-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_PriceInfoe-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_ProductActivityInfoe-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_AlcoholBeverageTypeCodee-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_BatteryInfoe-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_CertificationInfoe-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_ElectronicEquipmentTypeCodee-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_ImportClassificationInfoe-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_IsConsumerIdDocumentRequirede-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_IsItemElectronicEqupimente-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_IsItemOilProducte-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_IsItemPVCProducte-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_IsItemREACHRelevante-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_ItemSizeInfoe-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_ReferencedFilese-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord_MiscChargeInfoe-document-3_1_11_xsd_Complex_Type_ItemInfoRecord.tmp#ItemInfoRecord
Type ItemInfoRecord
Properties
content complex
minOccurs 0
Model
Children AdditionalInfo, AlcoholBeverageTypeCode, AlcoholContent, BatteryInfo, BrandName, CNCode, CertificationInfo, ClassOfItems, CompositionOfArticles, CountryOfOrigin, ElectronicEquipmentTypeCode, ExciseTaxGroup, ExciseTaxSum, ImportClassificationInfo, IngredientInfo, IsConsumerIdDocumentRequired, IsItemElectronicEqupiment, IsItemOilProduct, IsItemPVCProduct, IsItemREACHRelevant, ItemClassOfGoods, ItemDescriptionInfo, ItemDetailedDescription, ItemInstructionsInfo, ItemMaxRetailPrice, ItemPicture, ItemQualityClass, ItemRecommendations, ItemRegion, ItemSizeInfo, ItemSmell, ItemSubregion, ItemSugar, ItemTaste, ItemType, Manufacturer, MiscChargeInfo, Model, NutritionalInfo, PackagingMarkingInfo, PriceInfo, ProductActivityInfo, ReferencedFiles, SalesUnitOfMeasure, TechnicalDescription, TransportUnitOfMeasure, Volume, Year
Instance

<ItemInfo>
  <Year>{0,1}</Year>
  <Model>{0,1}</Model>
  <AlcoholContent>{0,1}</AlcoholContent>
  <ItemDetailedDescription lang="">{0,unbounded}</ItemDetailedDescription>
  <Volume>{0,1}</Volume>
  <Manufacturer lang="">{0,1}</Manufacturer>
  <BrandName lang="">{0,1}</BrandName>
  <ClassOfItems>{0,1}</ClassOfItems>
  <ItemClassOfGoods>{0,1}</ItemClassOfGoods>
  <TechnicalDescription lang="">{0,unbounded}</TechnicalDescription>
  <CountryOfOrigin>{0,1}</CountryOfOrigin>
  <ItemPicture>{0,1}</ItemPicture>
  <ExciseTaxGroup>{0,1}</ExciseTaxGroup>
  <ExciseTaxSum>{0,1}</ExciseTaxSum>
  <CNCode>{0,1}</CNCode>
  <SalesUnitOfMeasure>{0,1}</SalesUnitOfMeasure>
  <TransportUnitOfMeasure>{0,1}</TransportUnitOfMeasure>
  <ItemType>{0,1}</ItemType>
  <ItemQualityClass>{0,1}</ItemQualityClass>
  <ItemRecommendations>{0,1}</ItemRecommendations>
  <ItemRegion>{0,1}</ItemRegion>
  <ItemSmell>{0,1}</ItemSmell>
  <ItemSubregion>{0,1}</ItemSubregion>
  <CompositionOfArticles lang="">{0,unbounded}</CompositionOfArticles>
  <ItemSugar>{0,1}</ItemSugar>
  <ItemTaste>{0,1}</ItemTaste>
  <ItemMaxRetailPrice>{0,1}</ItemMaxRetailPrice>
  <AdditionalInfo>{0,1}</AdditionalInfo>
  <ItemDescriptionInfo>{0,1}</ItemDescriptionInfo>
  <ItemInstructionsInfo>{0,1}</ItemInstructionsInfo>
  <IngredientInfo>{0,1}</IngredientInfo>
  <NutritionalInfo>{0,1}</NutritionalInfo>
  <PackagingMarkingInfo>{0,1}</PackagingMarkingInfo>
  <PriceInfo>{0,1}</PriceInfo>
  <ProductActivityInfo>{0,1}</ProductActivityInfo>
  <AlcoholBeverageTypeCode>{0,1}</AlcoholBeverageTypeCode>
  <BatteryInfo>{0,1}</BatteryInfo>
  <CertificationInfo>{0,1}</CertificationInfo>
  <ElectronicEquipmentTypeCode>{0,1}</ElectronicEquipmentTypeCode>
  <ImportClassificationInfo>{0,1}</ImportClassificationInfo>
  <IsConsumerIdDocumentRequired>{0,1}</IsConsumerIdDocumentRequired>
  <IsItemElectronicEqupiment>{0,1}</IsItemElectronicEqupiment>
  <IsItemOilProduct>{0,1}</IsItemOilProduct>
  <IsItemPVCProduct>{0,1}</IsItemPVCProduct>
  <IsItemREACHRelevant>{0,1}</IsItemREACHRelevant>
  <ItemSizeInfo>{0,1}</ItemSizeInfo>
  <ReferencedFiles>{0,1}</ReferencedFiles>
  <MiscChargeInfo>{0,1}</MiscChargeInfo>
</ItemInfo>
Source

<xs:element minOccurs="0" name="ItemInfo" type="ItemInfoRecord"/>
Element ItemEntry / ItemRegistrationInfo
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_ItemRegistrationRecord.tmp#ItemRegistrationRecord_ItemRegistrationEntrye-document-3_1_11_xsd_Complex_Type_ItemRegistrationRecord.tmp#ItemRegistrationRecord
Type ItemRegistrationRecord
Properties
content complex
minOccurs 0
Model
Children ItemRegistrationEntry
Instance

<ItemRegistrationInfo>
  <ItemRegistrationEntry>{0,unbounded}</ItemRegistrationEntry>
</ItemRegistrationInfo>
Source

<xs:element minOccurs="0" name="ItemRegistrationInfo" type="ItemRegistrationRecord"/>
Element ItemEntry / ItemUnitRecord
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_ItemUnitRecord.tmp#ItemUnitRecord_ItemUnite-document-3_1_11_xsd_Complex_Type_ItemUnitRecord.tmp#ItemUnitRecord_ItemUnitGTINe-document-3_1_11_xsd_Complex_Type_ItemUnitRecord.tmp#ItemUnitRecord_Currencye-document-3_1_11_xsd_Complex_Type_ItemUnitRecord.tmp#ItemUnitRecord_ItemPricee-document-3_1_11_xsd_Complex_Type_ItemUnitRecord.tmp#ItemUnitRecord_ItemBasePricee-document-3_1_11_xsd_Element_UnitMeasure.tmp#UnitMeasuree-document-3_1_11_xsd_Complex_Type_ItemUnitRecord.tmp#ItemUnitRecord_ItemStatee-document-3_1_11_xsd_Complex_Type_ItemUnitRecord.tmp#ItemUnitRecord_AmountActuale-document-3_1_11_xsd_Complex_Type_ItemUnitRecord.tmp#ItemUnitRecord_ParentItemUnite-document-3_1_11_xsd_Complex_Type_ItemUnitRecord.tmp#ItemUnitRecord_ParentItemUnitGTINe-document-3_1_11_xsd_Complex_Type_ItemUnitRecord.tmp#ItemUnitRecord_AmountInParentItemUnite-document-3_1_11_xsd_Complex_Type_ItemUnitRecord.tmp#ItemUnitRecord_UnitNumeratore-document-3_1_11_xsd_Complex_Type_ItemUnitRecord.tmp#ItemUnitRecord_UnitDenumeratore-document-3_1_11_xsd_Complex_Type_ItemUnitRecord.tmp#ItemUnitRecord_ChildItemUnite-document-3_1_11_xsd_Complex_Type_ItemUnitRecord.tmp#ItemUnitRecord_ChildItemUnitGTINe-document-3_1_11_xsd_Complex_Type_ItemUnitRecord.tmp#ItemUnitRecord_AmountOfChildItemUnite-document-3_1_11_xsd_Complex_Type_ItemUnitRecord.tmp#ItemUnitRecord_IndicatedAmountInPackagee-document-3_1_11_xsd_Complex_Type_ItemUnitRecord.tmp#ItemUnitRecord_ItemUnitProductCodee-document-3_1_11_xsd_Complex_Type_ItemUnitRecord.tmp#ItemUnitRecord_ItemUnitDescriptorCodee-document-3_1_11_xsd_Complex_Type_ItemUnitRecord.tmp#ItemUnitRecord_PackagingInfoe-document-3_1_11_xsd_Complex_Type_ItemUnitRecord.tmp#ItemUnitRecord_DisplayUnitInfoe-document-3_1_11_xsd_Complex_Type_ItemUnitRecord.tmp#ItemUnitRecord_HierarchyInfoe-document-3_1_11_xsd_Complex_Type_ItemUnitRecord.tmp#ItemUnitRecord_IsItemAnOrderableUnite-document-3_1_11_xsd_Complex_Type_ItemUnitRecord.tmp#ItemUnitRecord
Type ItemUnitRecord
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children AmountActual, AmountInParentItemUnit, AmountOfChildItemUnit, ChildItemUnit, ChildItemUnitGTIN, Currency, DisplayUnitInfo, HierarchyInfo, IndicatedAmountInPackage, IsItemAnOrderableUnit, ItemBasePrice, ItemPrice, ItemState, ItemUnit, ItemUnitDescriptorCode, ItemUnitGTIN, ItemUnitProductCode, PackagingInfo, ParentItemUnit, ParentItemUnitGTIN, UnitDenumerator, UnitMeasure, UnitNumerator
Instance

<ItemUnitRecord>
  <ItemUnit>{0,1}</ItemUnit>
  <ItemUnitGTIN>{0,1}</ItemUnitGTIN>
  <Currency>{0,1}</Currency>
  <ItemPrice>{0,1}</ItemPrice>
  <ItemBasePrice>{0,1}</ItemBasePrice>
  <UnitMeasure>{0,1}</UnitMeasure>
  <ItemState>{0,1}</ItemState>
  <AmountActual>{0,1}</AmountActual>
  <ParentItemUnit>{0,1}</ParentItemUnit>
  <ParentItemUnitGTIN>{0,1}</ParentItemUnitGTIN>
  <AmountInParentItemUnit>{0,1}</AmountInParentItemUnit>
  <UnitNumerator>{0,1}</UnitNumerator>
  <UnitDenumerator>{0,1}</UnitDenumerator>
  <ChildItemUnit>{0,1}</ChildItemUnit>
  <ChildItemUnitGTIN>{0,1}</ChildItemUnitGTIN>
  <AmountOfChildItemUnit>{0,1}</AmountOfChildItemUnit>
  <IndicatedAmountInPackage>{0,1}</IndicatedAmountInPackage>
  <ItemUnitProductCode>{0,1}</ItemUnitProductCode>
  <ItemUnitDescriptorCode>{0,unbounded}</ItemUnitDescriptorCode>
  <PackagingInfo>{0,1}</PackagingInfo>
  <DisplayUnitInfo>{0,1}</DisplayUnitInfo>
  <HierarchyInfo>{0,1}</HierarchyInfo>
  <IsItemAnOrderableUnit>{0,1}</IsItemAnOrderableUnit>
</ItemUnitRecord>
Source

<xs:element minOccurs="0" maxOccurs="unbounded" name="ItemUnitRecord" type="ItemUnitRecord"/>
Element ItemEntry / BaseUnit
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
minOccurs 0
Facets
maxLength 50
Source

<xs:element minOccurs="0" name="BaseUnit" type="ShortTextType"/>
Element ItemEntry / SalesUnit
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
minOccurs 0
Facets
maxLength 50
Source

<xs:element minOccurs="0" name="SalesUnit" type="ShortTextType"/>
Element ItemEntry / TransportUnit
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
minOccurs 0
Facets
maxLength 50
Source

<xs:element minOccurs="0" name="TransportUnit" type="ShortTextType"/>
Element ItemEntry / DistributionUnit
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
minOccurs 0
Facets
maxLength 50
Source

<xs:element minOccurs="0" name="DistributionUnit" type="ShortTextType"/>
Element ItemEntry / AmountInParentItem
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal2FractionDigitsType.tmp#Decimal2FractionDigitsType
Type Decimal2FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 2
Source

<xs:element minOccurs="0" name="AmountInParentItem" type="Decimal2FractionDigitsType"/>
Element ItemEntry / IndicatedAmountInPackage
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal2FractionDigitsType.tmp#Decimal2FractionDigitsType
Type Decimal2FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 2
Source

<xs:element minOccurs="0" name="IndicatedAmountInPackage" type="Decimal2FractionDigitsType"/>
Element ItemEntry / ItemNumerator
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal2FractionDigitsType.tmp#Decimal2FractionDigitsType
Type Decimal2FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 2
Source

<xs:element minOccurs="0" name="ItemNumerator" type="Decimal2FractionDigitsType"/>
Element ItemEntry / ItemDenumerator
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal2FractionDigitsType.tmp#Decimal2FractionDigitsType
Type Decimal2FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 2
Source

<xs:element minOccurs="0" name="ItemDenumerator" type="Decimal2FractionDigitsType"/>
Element ItemEntry / AmountDespatched
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="AmountDespatched" type="Decimal5FractionDigitsType"/>
Element ItemEntry / AmountOffered
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="AmountOffered" type="Decimal5FractionDigitsType"/>
Element ItemEntry / AmountOrdered
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="AmountOrdered" type="Decimal5FractionDigitsType"/>
Element ItemEntry / AmountInvoiced
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="AmountInvoiced" type="Decimal5FractionDigitsType"/>
Element ItemEntry / AmountActual
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="AmountActual" type="Decimal5FractionDigitsType"/>
Element ItemEntry / AmountAccepted
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="AmountAccepted" type="Decimal5FractionDigitsType"/>
Element ItemEntry / AmountOnShelf
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="AmountOnShelf" type="Decimal5FractionDigitsType"/>
Element ItemEntry / AmountInStock
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="AmountInStock" type="Decimal5FractionDigitsType"/>
Element ItemEntry / AmountSold
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="AmountSold" type="Decimal5FractionDigitsType"/>
Element ItemEntry / AmountOutOfStock
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="AmountOutOfStock" type="Decimal5FractionDigitsType"/>
Element ItemEntry / AmountConsignment
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="AmountConsignment" type="Decimal5FractionDigitsType"/>
Element ItemEntry / AmountToReturn
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="AmountToReturn" type="Decimal5FractionDigitsType"/>
Element ItemEntry / Face
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_PositiveNumType.tmp#PositiveNumType
Type PositiveNumType
Properties
content simple
minOccurs 0
Source

<xs:element minOccurs="0" name="Face" type="PositiveNumType"/>
Element ItemEntry / ItemPrice
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="ItemPrice" type="Decimal5FractionDigitsType"/>
Element ItemEntry / ItemBasePrice
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="ItemBasePrice" type="Decimal5FractionDigitsType"/>
Element ItemEntry / ItemModifiedPrice
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="ItemModifiedPrice" type="Decimal5FractionDigitsType"/>
Element ItemEntry / Currency
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_CurrencyType.tmp#CurrencyType
Type CurrencyType
Properties
content simple
minOccurs 0
Facets
minLength 2
maxLength 3
pattern [a-z]{2,3}|[A-Z]{2,3}
Source

<xs:element minOccurs="0" name="Currency" type="CurrencyType"/>
Element ItemEntry / ItemSum
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="ItemSum" type="Decimal5FractionDigitsType"/>
Element ItemEntry / Addition
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_AdditionRecord.tmp#AdditionRecord_addCodee-document-3_1_11_xsd_Complex_Type_AdditionRecord.tmp#AdditionRecord_typee-document-3_1_11_xsd_Complex_Type_AdditionRecord.tmp#AdditionRecord_includede-document-3_1_11_xsd_Complex_Type_AdditionRecord.tmp#AdditionRecord_AddContente-document-3_1_11_xsd_Complex_Type_AdditionRecord.tmp#AdditionRecord_AddBasee-document-3_1_11_xsd_Complex_Type_AdditionRecord.tmp#AdditionRecord_AddRatee-document-3_1_11_xsd_Complex_Type_AdditionRecord.tmp#AdditionRecord_AddSume-document-3_1_11_xsd_Complex_Type_AdditionRecord.tmp#AdditionRecord
Type AdditionRecord
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children AddBase, AddContent, AddRate, AddSum
Instance

<Addition addCode="" included="" type="">
  <AddContent>{0,1}</AddContent>
  <AddBase>{0,1}</AddBase>
  <AddRate>{0,1}</AddRate>
  <AddSum>{0,1}</AddSum>
</Addition>
Attributes
QName Type Use
addCode AdditionCodeType required
included YesNoType optional
type NormalTextType optional
Source

<xs:element minOccurs="0" maxOccurs="unbounded" name="Addition" type="AdditionRecord"/>
Element ItemEntry / VAT
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_VATRecord.tmp#VATRecord_vatIDe-document-3_1_11_xsd_Complex_Type_VATRecord.tmp#VATRecord_SumBeforeVATe-document-3_1_11_xsd_Complex_Type_VATRecord.tmp#VATRecord_VATRatee-document-3_1_11_xsd_Complex_Type_VATRecord.tmp#VATRecord_VATSume-document-3_1_11_xsd_Complex_Type_VATRecord.tmp#VATRecord_Currencye-document-3_1_11_xsd_Complex_Type_VATRecord.tmp#VATRecord_Refe-document-3_1_11_xsd_Complex_Type_VATRecord.tmp#VATRecord_VATCodee-document-3_1_11_xsd_Complex_Type_VATRecord.tmp#VATRecord_VATERPIDe-document-3_1_11_xsd_Complex_Type_VATRecord.tmp#VATRecord_VATCategoryCodee-document-3_1_11_xsd_Complex_Type_VATRecord.tmp#VATRecord
Type VATRecord
Properties
content complex
minOccurs 0
Model
Children Currency, Ref, SumBeforeVAT, VATCategoryCode, VATCode, VATERPID, VATRate, VATSum
Instance

<VAT vatID="">
  <SumBeforeVAT>{0,1}</SumBeforeVAT>
  <VATRate>{0,1}</VATRate>
  <VATSum>{0,1}</VATSum>
  <Currency>{0,1}</Currency>
  <Ref extensionId="" lang="">{0,1}</Ref>
  <VATCode>{0,1}</VATCode>
  <VATERPID>{0,1}</VATERPID>
  <VATCategoryCode>{0,1}</VATCategoryCode>
</VAT>
Attributes
QName Type Use Annotation
vatID VATCodeType optional
Tax category in data-receiver's ERP, e.g. TAX, NOTTAX
Source

<xs:element minOccurs="0" name="VAT" type="VATRecord"/>
Element ItemEntry / ItemTotal
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="ItemTotal" type="Decimal5FractionDigitsType"/>
Element ItemEntry / ValidityDate
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_DateTimeType.tmp#DateTimeType
Type DateTimeType
Properties
content simple
minOccurs 0
Facets
minLength 10
maxLength 29
pattern \d{4,}-\d\d-\d\d(T\d\d:\d\d:\d\d(\.\d{1,3})?)?((\+|-)\d\d:\d\d|Z)?|\d{4,}-\d\d-\d\d((\+|-)\d\d:\d\d|Z)?
Source

<xs:element minOccurs="0" name="ValidityDate" type="DateTimeType"/>
Element ItemEntry / StartValidityDate
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_DateTimeType.tmp#DateTimeType
Type DateTimeType
Properties
content simple
minOccurs 0
Facets
minLength 10
maxLength 29
pattern \d{4,}-\d\d-\d\d(T\d\d:\d\d:\d\d(\.\d{1,3})?)?((\+|-)\d\d:\d\d|Z)?|\d{4,}-\d\d-\d\d((\+|-)\d\d:\d\d|Z)?
Source

<xs:element minOccurs="0" name="StartValidityDate" type="DateTimeType"/>
Element ItemEntry / EndValidityDate
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_DateTimeType.tmp#DateTimeType
Type DateTimeType
Properties
content simple
minOccurs 0
Facets
minLength 10
maxLength 29
pattern \d{4,}-\d\d-\d\d(T\d\d:\d\d:\d\d(\.\d{1,3})?)?((\+|-)\d\d:\d\d|Z)?|\d{4,}-\d\d-\d\d((\+|-)\d\d:\d\d|Z)?
Source

<xs:element minOccurs="0" name="EndValidityDate" type="DateTimeType"/>
Element ItemEntry / BestBefore
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_DateTimeType.tmp#DateTimeType
Type DateTimeType
Properties
content simple
minOccurs 0
Facets
minLength 10
maxLength 29
pattern \d{4,}-\d\d-\d\d(T\d\d:\d\d:\d\d(\.\d{1,3})?)?((\+|-)\d\d:\d\d|Z)?|\d{4,}-\d\d-\d\d((\+|-)\d\d:\d\d|Z)?
Source

<xs:element minOccurs="0" name="BestBefore" type="DateTimeType"/>
Element ItemEntry / BestBeforeMin
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_DateTimeType.tmp#DateTimeType
Type DateTimeType
Properties
content simple
minOccurs 0
Facets
minLength 10
maxLength 29
pattern \d{4,}-\d\d-\d\d(T\d\d:\d\d:\d\d(\.\d{1,3})?)?((\+|-)\d\d:\d\d|Z)?|\d{4,}-\d\d-\d\d((\+|-)\d\d:\d\d|Z)?
Source

<xs:element minOccurs="0" name="BestBeforeMin" type="DateTimeType"/>
Element ItemEntry / BestBeforeMax
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_DateTimeType.tmp#DateTimeType
Type DateTimeType
Properties
content simple
minOccurs 0
Facets
minLength 10
maxLength 29
pattern \d{4,}-\d\d-\d\d(T\d\d:\d\d:\d\d(\.\d{1,3})?)?((\+|-)\d\d:\d\d|Z)?|\d{4,}-\d\d-\d\d((\+|-)\d\d:\d\d|Z)?
Source

<xs:element minOccurs="0" name="BestBeforeMax" type="DateTimeType"/>
Element ItemEntry / SerialNum
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
minOccurs 0
Facets
maxLength 50
Source

<xs:element minOccurs="0" name="SerialNum" type="ShortTextType"/>
Element ItemEntry / ItemStatus
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_NormalTextType.tmp#NormalTextType
Type NormalTextType
Properties
content simple
minOccurs 0
Facets
maxLength 100
Source

<xs:element minOccurs="0" name="ItemStatus" type="NormalTextType"/>
Element ItemEntry / Accounting
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_AccountingRecord.tmp#AccountingRecord_Descriptione-document-3_1_11_xsd_Complex_Type_AccountingRecord.tmp#AccountingRecord_JournalEntrye-document-3_1_11_xsd_Complex_Type_AccountingRecord.tmp#AccountingRecord_PartnerCodee-document-3_1_11_xsd_Complex_Type_AccountingRecord.tmp#AccountingRecord_BusinessCodee-document-3_1_11_xsd_Complex_Type_AccountingRecord.tmp#AccountingRecord_SourceCodee-document-3_1_11_xsd_Complex_Type_AccountingRecord.tmp#AccountingRecord_CashFlowCodee-document-3_1_11_xsd_Complex_Type_AccountingRecord.tmp#AccountingRecord_ClassificatorCodee-document-3_1_11_xsd_Complex_Type_AccountingRecord.tmp#AccountingRecord
Type AccountingRecord
Properties
content complex
minOccurs 0
Model
Children BusinessCode, CashFlowCode, ClassificatorCode, Description, JournalEntry, PartnerCode, SourceCode
Instance

<Accounting>
  <Description>{0,1}</Description>
  <JournalEntry>{1,unbounded}</JournalEntry>
  <PartnerCode>{0,1}</PartnerCode>
  <BusinessCode>{0,1}</BusinessCode>
  <SourceCode>{0,1}</SourceCode>
  <CashFlowCode>{0,1}</CashFlowCode>
  <ClassificatorCode>{0,1}</ClassificatorCode>
</Accounting>
Source

<xs:element minOccurs="0" name="Accounting" type="AccountingRecord"/>
Element ItemEntry / CustomerRef
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_NormalTextType.tmp#NormalTextType
Type NormalTextType
Properties
content simple
minOccurs 0
Facets
maxLength 100
Source

<xs:element minOccurs="0" name="CustomerRef" type="NormalTextType"/>
Element ItemEntry / MovementTypeCode
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
minOccurs 0
Facets
maxLength 50
Source

<xs:element minOccurs="0" name="MovementTypeCode" type="ShortTextType"/>
Element ItemEntry / ReasonCode
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
minOccurs 0
Facets
maxLength 50
Source

<xs:element minOccurs="0" name="ReasonCode" type="ShortTextType"/>
Element ItemEntry / DecisionCode
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
minOccurs 0
Facets
maxLength 50
Source

<xs:element minOccurs="0" name="DecisionCode" type="ShortTextType"/>
Element ItemEntry / DateInfo
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_DateInfoRecord.tmp#DateInfoRecord_OfferDatee-document-3_1_11_xsd_Complex_Type_DateInfoRecord.tmp#DateInfoRecord_OrderDatee-document-3_1_11_xsd_Complex_Type_DateInfoRecord.tmp#DateInfoRecord_OrderDateOriginale-document-3_1_11_xsd_Complex_Type_DateInfoRecord.tmp#DateInfoRecord_IssueDatee-document-3_1_11_xsd_Complex_Type_DateInfoRecord.tmp#DateInfoRecord_InvoiceDatee-document-3_1_11_xsd_Complex_Type_DateInfoRecord.tmp#DateInfoRecord_DueDatee-document-3_1_11_xsd_Complex_Type_DateInfoRecord.tmp#DateInfoRecord_DeliveryDateRequestede-document-3_1_11_xsd_Complex_Type_DateInfoRecord.tmp#DateInfoRecord_DeliveryDateActuale-document-3_1_11_xsd_Complex_Type_DateInfoRecord.tmp#DateInfoRecord_DeliveryDatePromisede-document-3_1_11_xsd_Complex_Type_DateInfoRecord.tmp#DateInfoRecord_ProcessingDatee-document-3_1_11_xsd_Complex_Type_DateInfoRecord.tmp#DateInfoRecord_PickingDatee-document-3_1_11_xsd_Complex_Type_DateInfoRecord.tmp#DateInfoRecord_DespatchDateRequestede-document-3_1_11_xsd_Complex_Type_DateInfoRecord.tmp#DateInfoRecord_DespatchDateActuale-document-3_1_11_xsd_Complex_Type_DateInfoRecord.tmp#DateInfoRecord_ReceiptDateActuale-document-3_1_11_xsd_Complex_Type_DateInfoRecord.tmp#DateInfoRecord_InventoryDatee-document-3_1_11_xsd_Complex_Type_DateInfoRecord.tmp#DateInfoRecord_TransactionDatee-document-3_1_11_xsd_Complex_Type_DateInfoRecord.tmp#DateInfoRecord_CollectionDateRequestede-document-3_1_11_xsd_Complex_Type_DateInfoRecord.tmp#DateInfoRecord_VatPointDatee-document-3_1_11_xsd_Complex_Type_DateInfoRecord.tmp#DateInfoRecord_PaymentDateActuale-document-3_1_11_xsd_Complex_Type_DateInfoRecord.tmp#DateInfoRecord_Periode-document-3_1_11_xsd_Complex_Type_DateInfoRecord.tmp#DateInfoRecord_AdditionalInfoe-document-3_1_11_xsd_Complex_Type_DateInfoRecord.tmp#DateInfoRecord
Type DateInfoRecord
Properties
content complex
minOccurs 0
Model
Children AdditionalInfo, CollectionDateRequested, DeliveryDateActual, DeliveryDatePromised, DeliveryDateRequested, DespatchDateActual, DespatchDateRequested, DueDate, InventoryDate, InvoiceDate, IssueDate, OfferDate, OrderDate, OrderDateOriginal, PaymentDateActual, Period, PickingDate, ProcessingDate, ReceiptDateActual, TransactionDate, VatPointDate
Instance

<DateInfo>
  <OfferDate>{0,1}</OfferDate>
  <OrderDate>{0,1}</OrderDate>
  <OrderDateOriginal>{0,1}</OrderDateOriginal>
  <IssueDate>{0,1}</IssueDate>
  <InvoiceDate>{0,1}</InvoiceDate>
  <DueDate>{0,1}</DueDate>
  <DeliveryDateRequested>{0,1}</DeliveryDateRequested>
  <DeliveryDateActual>{0,1}</DeliveryDateActual>
  <DeliveryDatePromised>{0,1}</DeliveryDatePromised>
  <ProcessingDate>{0,1}</ProcessingDate>
  <PickingDate>{0,1}</PickingDate>
  <DespatchDateRequested>{0,1}</DespatchDateRequested>
  <DespatchDateActual>{0,1}</DespatchDateActual>
  <ReceiptDateActual>{0,1}</ReceiptDateActual>
  <InventoryDate>{0,1}</InventoryDate>
  <TransactionDate>{0,1}</TransactionDate>
  <CollectionDateRequested>{0,1}</CollectionDateRequested>
  <VatPointDate>{0,1}</VatPointDate>
  <PaymentDateActual>{0,1}</PaymentDateActual>
  <Period>{0,unbounded}</Period>
  <AdditionalInfo>{0,1}</AdditionalInfo>
</DateInfo>
Source

<xs:element minOccurs="0" name="DateInfo" type="DateInfoRecord"/>
Element ItemEntry / RefInfo
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_RefInfoRecord.tmp#RefInfoRecord_ReferenceNume-document-3_1_11_xsd_Complex_Type_RefInfoRecord.tmp#RefInfoRecord_CustomerRefe-document-3_1_11_xsd_Complex_Type_RefInfoRecord.tmp#RefInfoRecord_PaymentRefNume-document-3_1_11_xsd_Complex_Type_RefInfoRecord.tmp#RefInfoRecord_TransportReferenceIDe-document-3_1_11_xsd_Complex_Type_RefInfoRecord.tmp#RefInfoRecord_CREntryReferenceIDe-document-3_1_11_xsd_Complex_Type_RefInfoRecord.tmp#RefInfoRecord_TransportContractRefNume-document-3_1_11_xsd_Complex_Type_RefInfoRecord.tmp#RefInfoRecord_SourceDocumente-document-3_1_11_xsd_Complex_Type_RefInfoRecord.tmp#RefInfoRecord_AdditionalInfoe-document-3_1_11_xsd_Complex_Type_RefInfoRecord.tmp#RefInfoRecord_GTINe-document-3_1_11_xsd_Complex_Type_RefInfoRecord.tmp#RefInfoRecord_DataSourceGLNe-document-3_1_11_xsd_Complex_Type_RefInfoRecord.tmp#RefInfoRecord_TargetMarketInfoe-document-3_1_11_xsd_Complex_Type_RefInfoRecord.tmp#RefInfoRecord
Type RefInfoRecord
Properties
content complex
minOccurs 0
Model
Children AdditionalInfo, CREntryReferenceID, CustomerRef, DataSourceGLN, GTIN, PaymentRefNum, ReferenceNum, SourceDocument, TargetMarketInfo, TransportContractRefNum, TransportReferenceID
Instance

<RefInfo>
  <ReferenceNum type="">{0,1}</ReferenceNum>
  <CustomerRef>{0,1}</CustomerRef>
  <PaymentRefNum>{0,1}</PaymentRefNum>
  <TransportReferenceID>{0,1}</TransportReferenceID>
  <CREntryReferenceID>{0,1}</CREntryReferenceID>
  <TransportContractRefNum>{0,1}</TransportContractRefNum>
  <SourceDocument type="">{0,unbounded}</SourceDocument>
  <AdditionalInfo>{0,1}</AdditionalInfo>
  <GTIN>{0,1}</GTIN>
  <DataSourceGLN>{0,1}</DataSourceGLN>
  <TargetMarketInfo>{0,1}</TargetMarketInfo>
</RefInfo>
Source

<xs:element minOccurs="0" name="RefInfo" type="RefInfoRecord"/>
Element ItemEntry / Location
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_LocationRecord.tmp#LocationRecord_WMSLocationCodee-document-3_1_11_xsd_Complex_Type_LocationRecord.tmp#LocationRecord_WarehouseCodee-document-3_1_11_xsd_Complex_Type_LocationRecord.tmp#LocationRecord_ZoneCodee-document-3_1_11_xsd_Complex_Type_LocationRecord.tmp#LocationRecord_AisleCodee-document-3_1_11_xsd_Complex_Type_LocationRecord.tmp#LocationRecord_RackCodee-document-3_1_11_xsd_Complex_Type_LocationRecord.tmp#LocationRecord_LevelCodee-document-3_1_11_xsd_Complex_Type_LocationRecord.tmp#LocationRecord_BinCodee-document-3_1_11_xsd_Complex_Type_LocationRecord.tmp#LocationRecord
Type LocationRecord
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children AisleCode, BinCode, LevelCode, RackCode, WMSLocationCode, WarehouseCode, ZoneCode
Instance

<Location>
  <WMSLocationCode>{0,1}</WMSLocationCode>
  <WarehouseCode>{0,1}</WarehouseCode>
  <ZoneCode>{0,1}</ZoneCode>
  <AisleCode>{0,1}</AisleCode>
  <RackCode>{0,1}</RackCode>
  <LevelCode>{0,1}</LevelCode>
  <BinCode>{0,1}</BinCode>
</Location>
Source

<xs:element minOccurs="0" maxOccurs="1" name="Location" type="LocationRecord"/>
Element ItemEntry / ItemReserve
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_ReserveAmounte-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_LotNume-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_ValidityDatee-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_StartValidityDatee-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_EndValidityDatee-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_BestBeforee-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_BestBeforeMine-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_BestBeforeMaxe-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_TaxStampse-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_CustomsDeclarationNume-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_CertificateNume-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_CertificateStartDatee-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_CertificateEndDatee-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_SerialNume-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_ItemLocatione-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_Coloure-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_Sizee-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_Lengthe-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_SSCCe-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_SourceDocumentNume-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_SourceDocumentDatee-document-3_1_11_xsd_Element_ItemReserveParties.tmp#ItemReservePartiese-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_ItemReserveUnite-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_AdditionalInfoe-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_ItemConfiguratione-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_RefInfoe-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord_Locatione-document-3_1_11_xsd_Complex_Type_ItemReserveRecord.tmp#ItemReserveRecord
Type ItemReserveRecord
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children AdditionalInfo, BestBefore, BestBeforeMax, BestBeforeMin, CertificateEndDate, CertificateNum, CertificateStartDate, Colour, CustomsDeclarationNum, EndValidityDate, ItemConfiguration, ItemLocation, ItemReserveParties, ItemReserveUnit, Length, Location, LotNum, RefInfo, ReserveAmount, SSCC, SerialNum, Size, SourceDocumentDate, SourceDocumentNum, StartValidityDate, TaxStamps, ValidityDate
Instance

<ItemReserve>
  <ReserveAmount>{0,1}</ReserveAmount>
  <LotNum>{0,1}</LotNum>
  <ValidityDate>{0,1}</ValidityDate>
  <StartValidityDate>{0,1}</StartValidityDate>
  <EndValidityDate>{0,1}</EndValidityDate>
  <BestBefore>{0,1}</BestBefore>
  <BestBeforeMin>{0,1}</BestBeforeMin>
  <BestBeforeMax>{0,1}</BestBeforeMax>
  <TaxStamps>{0,1}</TaxStamps>
  <CustomsDeclarationNum>{0,unbounded}</CustomsDeclarationNum>
  <CertificateNum>{0,1}</CertificateNum>
  <CertificateStartDate>{0,1}</CertificateStartDate>
  <CertificateEndDate>{0,1}</CertificateEndDate>
  <SerialNum>{0,1}</SerialNum>
  <ItemLocation>{0,1}</ItemLocation>
  <Colour lang="">{0,unbounded}</Colour>
  <Size>{0,1}</Size>
  <Length>{0,1}</Length>
  <SSCC>{0,1}</SSCC>
  <SourceDocumentNum>{0,1}</SourceDocumentNum>
  <SourceDocumentDate>{0,1}</SourceDocumentDate>
  <ItemReserveParties>{0,1}</ItemReserveParties>
  <ItemReserveUnit>{0,unbounded}</ItemReserveUnit>
  <AdditionalInfo>{0,1}</AdditionalInfo>
  <ItemConfiguration>{0,1}</ItemConfiguration>
  <RefInfo>{0,1}</RefInfo>
  <Location>{0,1}</Location>
</ItemReserve>
Source

<xs:element minOccurs="0" maxOccurs="unbounded" name="ItemReserve" type="ItemReserveRecord"/>
Element ItemEntry / ItemState
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_ItemStateRecord.tmp#ItemStateRecord_StateCodee-document-3_1_11_xsd_Complex_Type_ItemStateRecord.tmp#ItemStateRecord_StateDescriptione-document-3_1_11_xsd_Complex_Type_ItemStateRecord.tmp#ItemStateRecord
Type ItemStateRecord
Properties
content complex
minOccurs 0
Model
Children StateCode, StateDescription
Instance

<ItemState>
  <StateCode>{0,1}</StateCode>
  <StateDescription>{1,1}</StateDescription>
</ItemState>
Source

<xs:element minOccurs="0" name="ItemState" type="ItemStateRecord"/>
Element ItemEntry / AdditionalInfo
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_AdditionalInfoRecord.tmp#AdditionalInfoRecord_Extensione-document-3_1_11_xsd_Complex_Type_AdditionalInfoRecord.tmp#AdditionalInfoRecord
Type AdditionalInfoRecord
Properties
content complex
minOccurs 0
Model
Children Extension
Instance

<AdditionalInfo>
  <Extension extensionId="" lang="">{1,unbounded}</Extension>
</AdditionalInfo>
Source

<xs:element minOccurs="0" name="AdditionalInfo" type="AdditionalInfoRecord"/>
Element ItemEntry / Attachments
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_AttachmentRecord.tmp#AttachmentRecord_Filee-document-3_1_11_xsd_Complex_Type_AttachmentRecord.tmp#AttachmentRecord
Type AttachmentRecord
Properties
content complex
minOccurs 0
Model
Children File
Instance

<Attachments>
  <File fileID="">{1,unbounded}</File>
</Attachments>
Source

<xs:element minOccurs="0" name="Attachments" type="AttachmentRecord"/>
Element ItemEntry / ItemAdditionalClassifications
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_ItemAdditionalClassifications.tmp#ItemAdditionalClassifications_ItemAdditionalClassificatione-document-3_1_11_xsd_Complex_Type_ItemAdditionalClassifications.tmp#ItemAdditionalClassifications
Type ItemAdditionalClassifications
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children ItemAdditionalClassification
Instance

<ItemAdditionalClassifications>
  <ItemAdditionalClassification>{1,unbounded}</ItemAdditionalClassification>
</ItemAdditionalClassifications>
Source

<xs:element minOccurs="0" maxOccurs="1" name="ItemAdditionalClassifications" type="ItemAdditionalClassifications"/>
Element ItemEntry / TargetMarkets
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_TargetMarketInfoRecord.tmp#TargetMarketInfoRecord_TargetMarketCountryCodee-document-3_1_11_xsd_Complex_Type_TargetMarketInfoRecord.tmp#TargetMarketInfoRecord
Type TargetMarketInfoRecord
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children TargetMarketCountryCode
Instance

<TargetMarkets>
  <TargetMarketCountryCode>{1,unbounded}</TargetMarketCountryCode>
</TargetMarkets>
Source

<xs:element minOccurs="0" maxOccurs="1" name="TargetMarkets" type="TargetMarketInfoRecord"/>
Element ItemEntry / QuantityDifferences
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_QuantityDifferences.tmp#QuantityDifferences_QuantityDifferenceRecorde-document-3_1_11_xsd_Complex_Type_QuantityDifferences.tmp#QuantityDifferences
Type QuantityDifferences
Properties
content complex
minOccurs 0
Model
Children QuantityDifferenceRecord
Instance

<QuantityDifferences>
  <QuantityDifferenceRecord>{1,unbounded}</QuantityDifferenceRecord>
</QuantityDifferences>
Source

<xs:element minOccurs="0" name="QuantityDifferences" type="QuantityDifferences"/>
Element ItemEntry / MonetaryAmounts
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_MonetaryAmounts.tmp#MonetaryAmounts_MonetaryAmounte-document-3_1_11_xsd_Complex_Type_MonetaryAmounts.tmp#MonetaryAmounts
Type MonetaryAmounts
Properties
content complex
minOccurs 0
Model
Children MonetaryAmount
Instance

<MonetaryAmounts>
  <MonetaryAmount>{1,unbounded}</MonetaryAmount>
</MonetaryAmounts>
Source

<xs:element minOccurs="0" name="MonetaryAmounts" type="MonetaryAmounts"/>
XML Schema documentation generated by ® XML Developer.
