Namespace
No namespace
Diagram
Used by
Model
Year{0,1} ,
Model{0,1} ,
AlcoholContent{0,1} ,
ItemDetailedDescription* ,
Volume{0,1} ,
Manufacturer{0,1} ,
BrandName{0,1} ,
ClassOfItems{0,1} ,
ItemClassOfGoods{0,1} ,
TechnicalDescription* ,
CountryOfOrigin{0,1} ,
ItemPicture{0,1} ,
ExciseTaxGroup{0,1} ,
ExciseTaxSum{0,1} ,
CNCode{0,1} ,
SalesUnitOfMeasure{0,1} ,
TransportUnitOfMeasure{0,1} ,
ItemType{0,1} ,
ItemQualityClass{0,1} ,
ItemRecommendations{0,1} ,
ItemRegion{0,1} ,
ItemSmell{0,1} ,
ItemSubregion{0,1} ,
CompositionOfArticles* ,
ItemSugar{0,1} ,
ItemTaste{0,1} ,
ItemMaxRetailPrice{0,1} ,
AdditionalInfo{0,1} ,
ItemDescriptionInfo{0,1} ,
ItemInstructionsInfo{0,1} ,
IngredientInfo{0,1} ,
NutritionalInfo{0,1} ,
PackagingMarkingInfo{0,1} ,
PriceInfo{0,1} ,
ProductActivityInfo{0,1} ,
AlcoholBeverageTypeCode{0,1} ,
BatteryInfo{0,1} ,
CertificationInfo{0,1} ,
ElectronicEquipmentTypeCode{0,1} ,
ImportClassificationInfo{0,1} ,
IsConsumerIdDocumentRequired{0,1} ,
IsItemElectronicEqupiment{0,1} ,
IsItemOilProduct{0,1} ,
IsItemPVCProduct{0,1} ,
IsItemREACHRelevant{0,1} ,
ItemSizeInfo{0,1} ,
ReferencedFiles{0,1} ,
MiscChargeInfo{0,1}
Children
AdditionalInfo , AlcoholBeverageTypeCode , AlcoholContent , BatteryInfo , BrandName , CNCode , CertificationInfo , ClassOfItems , CompositionOfArticles , CountryOfOrigin , ElectronicEquipmentTypeCode , ExciseTaxGroup , ExciseTaxSum , ImportClassificationInfo , IngredientInfo , IsConsumerIdDocumentRequired , IsItemElectronicEqupiment , IsItemOilProduct , IsItemPVCProduct , IsItemREACHRelevant , ItemClassOfGoods , ItemDescriptionInfo , ItemDetailedDescription , ItemInstructionsInfo , ItemMaxRetailPrice , ItemPicture , ItemQualityClass , ItemRecommendations , ItemRegion , ItemSizeInfo , ItemSmell , ItemSubregion , ItemSugar , ItemTaste , ItemType , Manufacturer , MiscChargeInfo , Model , NutritionalInfo , PackagingMarkingInfo , PriceInfo , ProductActivityInfo , ReferencedFiles , SalesUnitOfMeasure , TechnicalDescription , TransportUnitOfMeasure , Volume , Year
Source
<xs:complexType name= "ItemInfoRecord" >
<xs:sequence >
<xs:element minOccurs= "0" name= "Year" type= "ShortTextType" />
<xs:element minOccurs= "0" name= "Model" type= "NormalTextType" />
<xs:element minOccurs= "0" name= "AlcoholContent" type= "Decimal2FractionDigitsType" />
<xs:element minOccurs= "0" maxOccurs= "unbounded" name= "ItemDetailedDescription" type= "LongTextLangType" />
<xs:element minOccurs= "0" name= "Volume" type= "Decimal5FractionDigitsType" />
<xs:element minOccurs= "0" name= "Manufacturer" type= "LongTextLangType" />

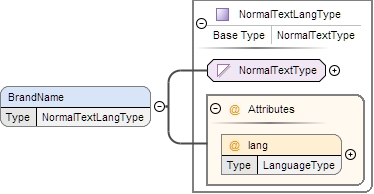

<xs:element minOccurs= "0" name= "BrandName" type= "NormalTextLangType" />
<xs:element minOccurs= "0" name= "ClassOfItems" type= "NormalTextType" />
<xs:element minOccurs= "0" name= "ItemClassOfGoods" type= "NormalTextType" />
<xs:element minOccurs= "0" maxOccurs= "unbounded" name= "TechnicalDescription" type= "LongTextLangType" />
<xs:element minOccurs= "0" name= "CountryOfOrigin" type= "ShortTextType" />
<xs:element minOccurs= "0" name= "ItemPicture" type= "Base64Binary" />
<xs:element minOccurs= "0" name= "ExciseTaxGroup" type= "ExciseTaxGroupType" />
<xs:element minOccurs= "0" name= "ExciseTaxSum" type= "Decimal5FractionDigitsType" />
<xs:element minOccurs= "0" name= "CNCode" type= "PositiveNumType" />
<xs:element minOccurs= "0" name= "SalesUnitOfMeasure" type= "ShortTextType" />
<xs:element minOccurs= "0" name= "TransportUnitOfMeasure" type= "ShortTextType" />
<xs:element minOccurs= "0" name= "ItemType" type= "NormalTextType" />
<xs:element minOccurs= "0" name= "ItemQualityClass" type= "NormalTextType" />
<xs:element minOccurs= "0" name= "ItemRecommendations" type= "LongTextType" />
<xs:element minOccurs= "0" name= "ItemRegion" type= "NormalTextType" />
<xs:element minOccurs= "0" name= "ItemSmell" type= "NormalTextType" />
<xs:element minOccurs= "0" name= "ItemSubregion" type= "NormalTextType" />

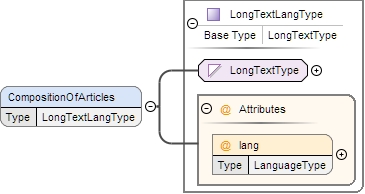

<xs:element minOccurs= "0" maxOccurs= "unbounded" name= "CompositionOfArticles" type= "LongTextLangType" />
<xs:element minOccurs= "0" name= "ItemSugar" type= "Decimal5FractionDigitsType" />
<xs:element minOccurs= "0" name= "ItemTaste" type= "LongTextType" />
<xs:element minOccurs= "0" name= "ItemMaxRetailPrice" type= "Decimal5FractionDigitsType" />
<xs:element minOccurs= "0" name= "AdditionalInfo" type= "AdditionalInfoRecord" />

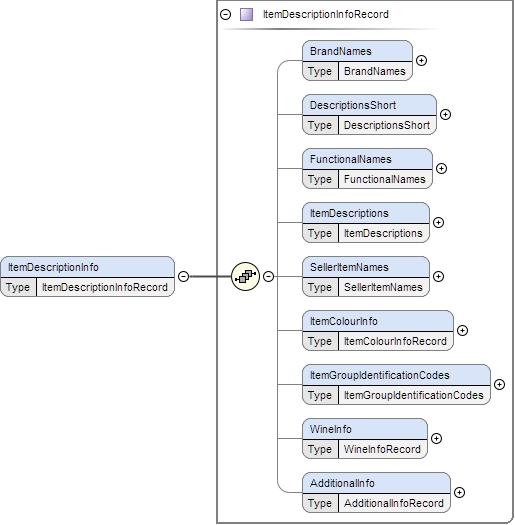

<xs:element minOccurs= "0" maxOccurs= "1" name= "ItemDescriptionInfo" type= "ItemDescriptionInfoRecord" />

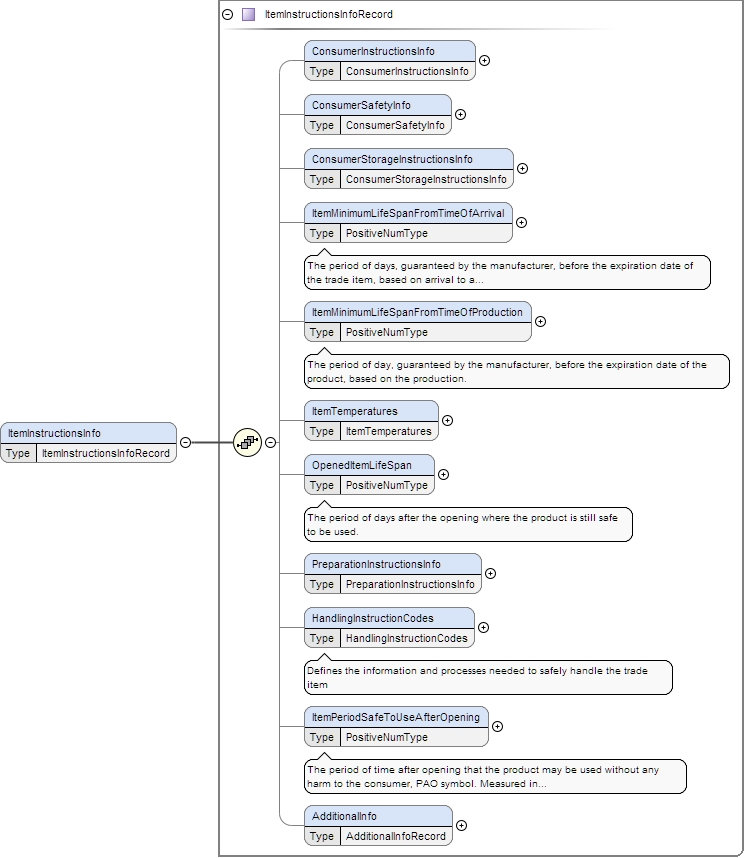

<xs:element minOccurs= "0" maxOccurs= "1" name= "ItemInstructionsInfo" type= "ItemInstructionsInfoRecord" />

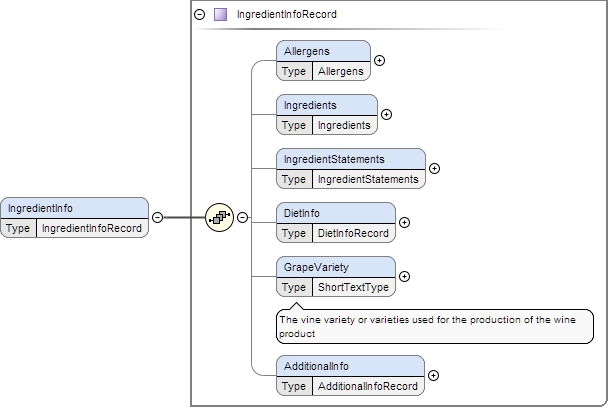

<xs:element minOccurs= "0" maxOccurs= "1" name= "IngredientInfo" type= "IngredientInfoRecord" />

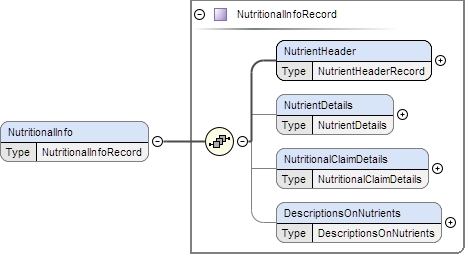

<xs:element minOccurs= "0" maxOccurs= "1" name= "NutritionalInfo" type= "NutritionalInfoRecord" />

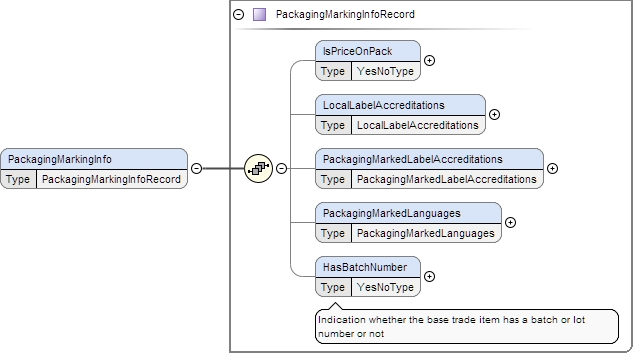

<xs:element minOccurs= "0" maxOccurs= "1" name= "PackagingMarkingInfo" type= "PackagingMarkingInfoRecord" />

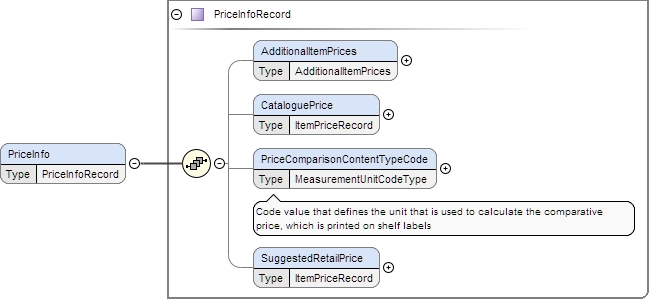

<xs:element minOccurs= "0" maxOccurs= "1" name= "PriceInfo" type= "PriceInfoRecord" />

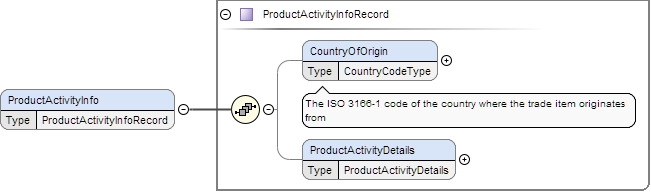

<xs:element minOccurs= "0" maxOccurs= "1" name= "ProductActivityInfo" type= "ProductActivityInfoRecord" />
<xs:element minOccurs= "0" maxOccurs= "1" name= "AlcoholBeverageTypeCode" type= "AlcoholBeverageType" >
<xs:annotation >
<xs:documentation > Code defining type of alcoholic product </xs:documentation>
</xs:annotation>
</xs:element>
<xs:element minOccurs= "0" maxOccurs= "1" name= "BatteryInfo" type= "BatteryInfoRecord" />
<xs:element minOccurs= "0" maxOccurs= "1" name= "CertificationInfo" type= "CertificationInfoRecord" />
<xs:element minOccurs= "0" maxOccurs= "1" name= "ElectronicEquipmentTypeCode" type= "ElectronicEquipmentType" >
<xs:annotation >
<xs:documentation > Code defining type of electronic equipment product </xs:documentation>
</xs:annotation>
</xs:element>
<xs:element minOccurs= "0" maxOccurs= "1" name= "ImportClassificationInfo" type= "ImportClassificationInfoRecord" />

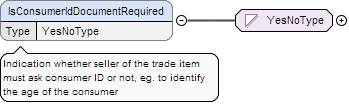

<xs:element minOccurs= "0" maxOccurs= "1" name= "IsConsumerIdDocumentRequired" type= "YesNoType" >
<xs:annotation >
<xs:documentation > Indication whether seller of the trade item must ask consumer ID or not, eg. to identify the age of the consumer </xs:documentation>
</xs:annotation>
</xs:element>

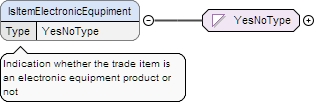

<xs:element minOccurs= "0" maxOccurs= "1" name= "IsItemElectronicEqupiment" type= "YesNoType" >
<xs:annotation >
<xs:documentation > Indication whether the trade item is an electronic equipment product or not </xs:documentation>
</xs:annotation>
</xs:element>
<xs:element minOccurs= "0" maxOccurs= "1" name= "IsItemOilProduct" type= "YesNoType" >
<xs:annotation >
<xs:documentation > Indication whether the trade item is an oil product or not </xs:documentation>
</xs:annotation>
</xs:element>
<xs:element minOccurs= "0" maxOccurs= "1" name= "IsItemPVCProduct" type= "YesNoType" >
<xs:annotation >
<xs:documentation > Indication whether the trade item is a PVC product or not </xs:documentation>
</xs:annotation>
</xs:element>
<xs:element minOccurs= "0" maxOccurs= "1" name= "IsItemREACHRelevant" type= "YesNoType" >
<xs:annotation >
<xs:documentation > Indication whether the trade item may have ingredients that subject it to REACH </xs:documentation>
</xs:annotation>
</xs:element>

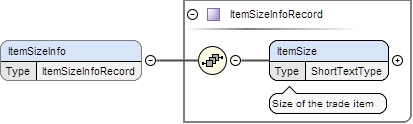

<xs:element minOccurs= "0" maxOccurs= "1" name= "ItemSizeInfo" type= "ItemSizeInfoRecord" />

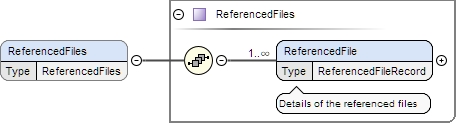

<xs:element minOccurs= "0" maxOccurs= "1" name= "ReferencedFiles" type= "ReferencedFiles" />

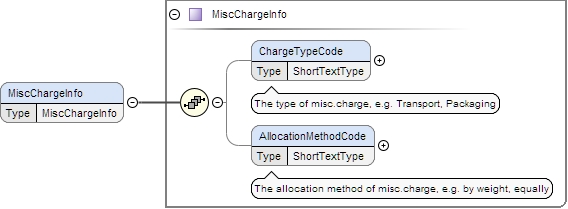

<xs:element minOccurs= "0" maxOccurs= "1" name= "MiscChargeInfo" type= "MiscChargeInfo" />
</xs:sequence>
</xs:complexType>
