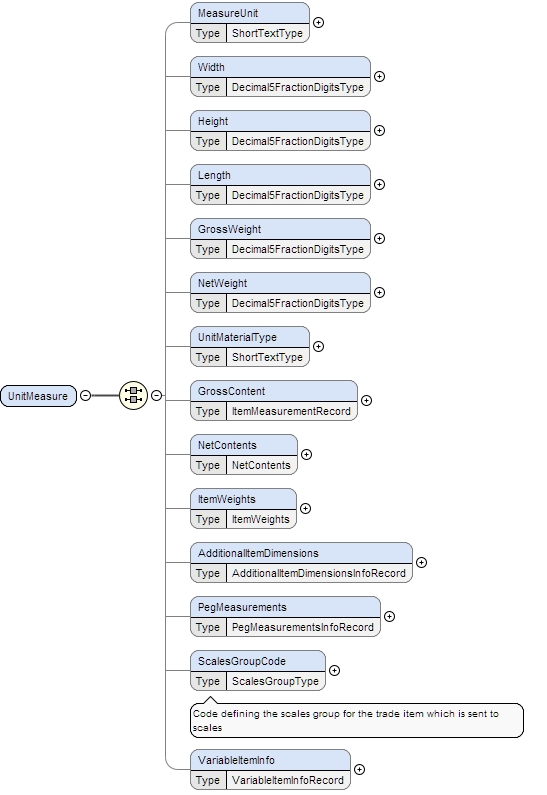

Element UnitMeasure
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Element_UnitMeasure.tmp#UnitMeasure_MeasureUnite-document-3_1_11_xsd_Element_UnitMeasure.tmp#UnitMeasure_Widthe-document-3_1_11_xsd_Element_UnitMeasure.tmp#UnitMeasure_Heighte-document-3_1_11_xsd_Element_UnitMeasure.tmp#UnitMeasure_Lengthe-document-3_1_11_xsd_Element_UnitMeasure.tmp#UnitMeasure_GrossWeighte-document-3_1_11_xsd_Element_UnitMeasure.tmp#UnitMeasure_NetWeighte-document-3_1_11_xsd_Element_UnitMeasure.tmp#UnitMeasure_UnitMaterialTypee-document-3_1_11_xsd_Element_UnitMeasure.tmp#UnitMeasure_GrossContente-document-3_1_11_xsd_Element_UnitMeasure.tmp#UnitMeasure_NetContentse-document-3_1_11_xsd_Element_UnitMeasure.tmp#UnitMeasure_ItemWeightse-document-3_1_11_xsd_Element_UnitMeasure.tmp#UnitMeasure_AdditionalItemDimensionse-document-3_1_11_xsd_Element_UnitMeasure.tmp#UnitMeasure_PegMeasurementse-document-3_1_11_xsd_Element_UnitMeasure.tmp#UnitMeasure_ScalesGroupCodee-document-3_1_11_xsd_Element_UnitMeasure.tmp#UnitMeasure_VariableItemInfo
Properties
content complex
Used by
Complex Type ItemUnitRecord
Model
Children AdditionalItemDimensions, GrossContent, GrossWeight, Height, ItemWeights, Length, MeasureUnit, NetContents, NetWeight, PegMeasurements, ScalesGroupCode, UnitMaterialType, VariableItemInfo, Width
Instance

<UnitMeasure>
  <MeasureUnit>{0,1}</MeasureUnit>
  <Width>{0,1}</Width>
  <Height>{0,1}</Height>
  <Length>{0,1}</Length>
  <GrossWeight>{0,1}</GrossWeight>
  <NetWeight>{0,1}</NetWeight>
  <UnitMaterialType>{0,1}</UnitMaterialType>
  <GrossContent>{0,1}</GrossContent>
  <NetContents>{0,1}</NetContents>
  <ItemWeights>{0,1}</ItemWeights>
  <AdditionalItemDimensions>{0,1}</AdditionalItemDimensions>
  <PegMeasurements>{0,1}</PegMeasurements>
  <ScalesGroupCode>{0,1}</ScalesGroupCode>
  <VariableItemInfo>{0,1}</VariableItemInfo>
</UnitMeasure>
Source

<xs:element name="UnitMeasure">
  <xs:complexType>
    <xs:all>
      <xs:element minOccurs="0" name="MeasureUnit" type="ShortTextType"/>
      <xs:element minOccurs="0" name="Width" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" name="Height" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" name="Length" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" name="GrossWeight" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" name="NetWeight" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" name="UnitMaterialType" type="ShortTextType"/>
      <xs:element minOccurs="0" maxOccurs="1" name="GrossContent" type="ItemMeasurementRecord"/>
      <xs:element minOccurs="0" maxOccurs="1" name="NetContents" type="NetContents"/>
      <xs:element minOccurs="0" maxOccurs="1" name="ItemWeights" type="ItemWeights"/>
      <xs:element minOccurs="0" maxOccurs="1" name="AdditionalItemDimensions" type="AdditionalItemDimensionsInfoRecord"/>
      <xs:element minOccurs="0" maxOccurs="1" name="PegMeasurements" type="PegMeasurementsInfoRecord"/>
      <xs:element minOccurs="0" maxOccurs="1" name="ScalesGroupCode" type="ScalesGroupType">
        <xs:annotation>
          <xs:documentation>Code defining the scales group for the trade item which is sent to scales</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element minOccurs="0" maxOccurs="1" name="VariableItemInfo" type="VariableItemInfoRecord"/>
    </xs:all>
  </xs:complexType>
</xs:element>
Element UnitMeasure / MeasureUnit
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
minOccurs 0
Facets
maxLength 50
Source

<xs:element minOccurs="0" name="MeasureUnit" type="ShortTextType"/>
Element UnitMeasure / Width
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="Width" type="Decimal5FractionDigitsType"/>
Element UnitMeasure / Height
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="Height" type="Decimal5FractionDigitsType"/>
Element UnitMeasure / Length
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="Length" type="Decimal5FractionDigitsType"/>
Element UnitMeasure / GrossWeight
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="GrossWeight" type="Decimal5FractionDigitsType"/>
Element UnitMeasure / NetWeight
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="NetWeight" type="Decimal5FractionDigitsType"/>
Element UnitMeasure / UnitMaterialType
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
minOccurs 0
Facets
maxLength 50
Source

<xs:element minOccurs="0" name="UnitMaterialType" type="ShortTextType"/>

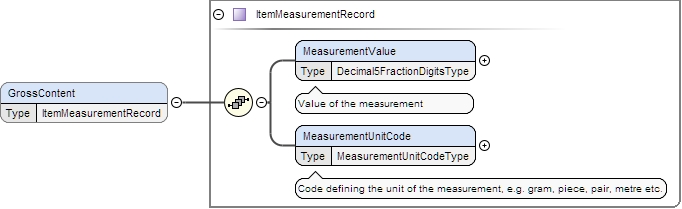

Element UnitMeasure / GrossContent
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_ItemMeasurementRecord.tmp#ItemMeasurementRecord_MeasurementValuee-document-3_1_11_xsd_Complex_Type_ItemMeasurementRecord.tmp#ItemMeasurementRecord_MeasurementUnitCodee-document-3_1_11_xsd_Complex_Type_ItemMeasurementRecord.tmp#ItemMeasurementRecord
Type ItemMeasurementRecord
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children MeasurementUnitCode, MeasurementValue
Instance

<GrossContent>
  <MeasurementValue>{1,1}</MeasurementValue>
  <MeasurementUnitCode>{1,1}</MeasurementUnitCode>
</GrossContent>
Source

<xs:element minOccurs="0" maxOccurs="1" name="GrossContent" type="ItemMeasurementRecord"/>

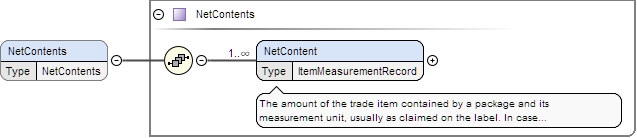

Element UnitMeasure / NetContents
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_NetContents.tmp#NetContents_NetContente-document-3_1_11_xsd_Complex_Type_NetContents.tmp#NetContents
Type NetContents
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children NetContent
Instance

<NetContents>
  <NetContent>{1,unbounded}</NetContent>
</NetContents>
Source

<xs:element minOccurs="0" maxOccurs="1" name="NetContents" type="NetContents"/>

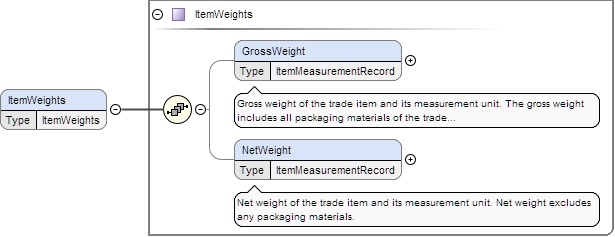

Element UnitMeasure / ItemWeights
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_ItemWeights.tmp#ItemWeights_GrossWeighte-document-3_1_11_xsd_Complex_Type_ItemWeights.tmp#ItemWeights_NetWeighte-document-3_1_11_xsd_Complex_Type_ItemWeights.tmp#ItemWeights
Type ItemWeights
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children GrossWeight, NetWeight
Instance

<ItemWeights>
  <GrossWeight>{0,1}</GrossWeight>
  <NetWeight>{0,1}</NetWeight>
</ItemWeights>
Source

<xs:element minOccurs="0" maxOccurs="1" name="ItemWeights" type="ItemWeights"/>

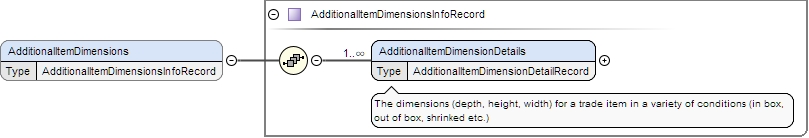

Element UnitMeasure / AdditionalItemDimensions
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_AdditionalItemDimensionsInfoRecord.tmp#AdditionalItemDimensionsInfoRecord_AdditionalItemDimensionDetailse-document-3_1_11_xsd_Complex_Type_AdditionalItemDimensionsInfoRecord.tmp#AdditionalItemDimensionsInfoRecord
Type AdditionalItemDimensionsInfoRecord
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children AdditionalItemDimensionDetails
Instance

<AdditionalItemDimensions>
  <AdditionalItemDimensionDetails>{1,unbounded}</AdditionalItemDimensionDetails>
</AdditionalItemDimensions>
Source

<xs:element minOccurs="0" maxOccurs="1" name="AdditionalItemDimensions" type="AdditionalItemDimensionsInfoRecord"/>
Element UnitMeasure / PegMeasurements
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_PegMeasurementsInfoRecord.tmp#PegMeasurementsInfoRecord_HasPegHolee-document-3_1_11_xsd_Complex_Type_PegMeasurementsInfoRecord.tmp#PegMeasurementsInfoRecord
Type PegMeasurementsInfoRecord
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children HasPegHole
Instance

<PegMeasurements>
  <HasPegHole>{0,1}</HasPegHole>
</PegMeasurements>
Source

<xs:element minOccurs="0" maxOccurs="1" name="PegMeasurements" type="PegMeasurementsInfoRecord"/>
Element UnitMeasure / ScalesGroupCode
Namespace No namespace
Annotations

Code defining the scales group for the trade item which is sent to scales
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ScalesGroupType.tmp#ScalesGroupType
Type ScalesGroupType
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
pattern (\c+) & ((NO_SENT)|(NO_STCK)|(SENT_SCLS))
Source

<xs:element minOccurs="0" maxOccurs="1" name="ScalesGroupCode" type="ScalesGroupType">
  <xs:annotation>
    <xs:documentation>Code defining the scales group for the trade item which is sent to scales</xs:documentation>
  </xs:annotation>
</xs:element>

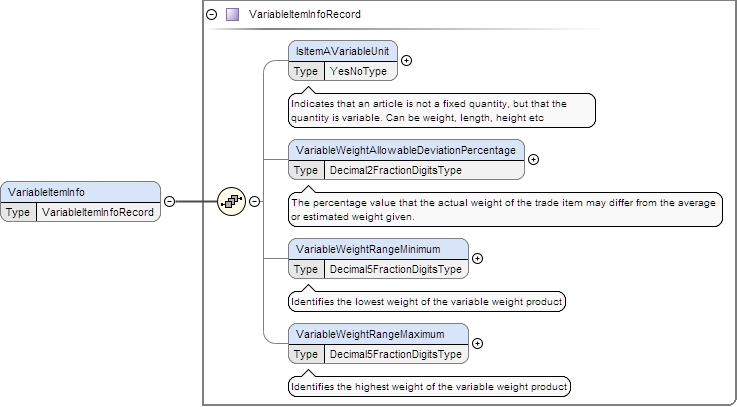

Element UnitMeasure / VariableItemInfo
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_VariableItemInfoRecord.tmp#VariableItemInfoRecord_IsItemAVariableUnite-document-3_1_11_xsd_Complex_Type_VariableItemInfoRecord.tmp#VariableItemInfoRecord_VariableWeightAllowableDeviationPercentagee-document-3_1_11_xsd_Complex_Type_VariableItemInfoRecord.tmp#VariableItemInfoRecord_VariableWeightRangeMinimume-document-3_1_11_xsd_Complex_Type_VariableItemInfoRecord.tmp#VariableItemInfoRecord_VariableWeightRangeMaximume-document-3_1_11_xsd_Complex_Type_VariableItemInfoRecord.tmp#VariableItemInfoRecord
Type VariableItemInfoRecord
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children IsItemAVariableUnit, VariableWeightAllowableDeviationPercentage, VariableWeightRangeMaximum, VariableWeightRangeMinimum
Instance

<VariableItemInfo>
  <IsItemAVariableUnit>{0,1}</IsItemAVariableUnit>
  <VariableWeightAllowableDeviationPercentage>{0,1}</VariableWeightAllowableDeviationPercentage>
  <VariableWeightRangeMinimum>{0,1}</VariableWeightRangeMinimum>
  <VariableWeightRangeMaximum>{0,1}</VariableWeightRangeMaximum>
</VariableItemInfo>
Source

<xs:element minOccurs="0" maxOccurs="1" name="VariableItemInfo" type="VariableItemInfoRecord"/>
