Element Header
Namespace No namespace
Annotations

Transportation information about the document

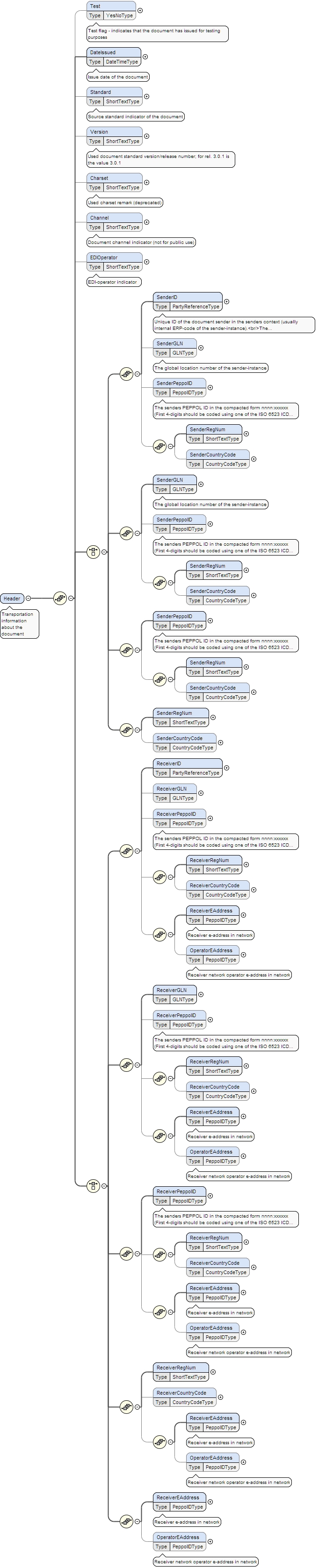

Diagram
Diagrame-document-3_1_11_xsd_Element_Header.tmp#Header_Teste-document-3_1_11_xsd_Element_Header.tmp#Header_DateIssuede-document-3_1_11_xsd_Element_Header.tmp#Header_Standarde-document-3_1_11_xsd_Element_Header.tmp#Header_Versione-document-3_1_11_xsd_Element_Header.tmp#Header_Charsete-document-3_1_11_xsd_Element_Header.tmp#Header_Channele-document-3_1_11_xsd_Element_Header.tmp#Header_EDIOperatore-document-3_1_11_xsd_Element_Header.tmp#Header_SenderIDe-document-3_1_11_xsd_Element_Header.tmp#Header_SenderGLNe-document-3_1_11_xsd_Element_Header.tmp#Header_SenderPeppolIDe-document-3_1_11_xsd_Element_Header.tmp#Header_SenderRegNume-document-3_1_11_xsd_Element_Header.tmp#Header_SenderCountryCodee-document-3_1_11_xsd_Element_Header.tmp#Header_ReceiverIDe-document-3_1_11_xsd_Element_Header.tmp#Header_ReceiverGLNe-document-3_1_11_xsd_Element_Header.tmp#Header_ReceiverPeppolIDe-document-3_1_11_xsd_Element_Header.tmp#Header_ReceiverRegNume-document-3_1_11_xsd_Element_Header.tmp#Header_ReceiverCountryCodee-document-3_1_11_xsd_Element_Header.tmp#Header_ReceiverEAddresse-document-3_1_11_xsd_Element_Header.tmp#Header_OperatorEAddress
Properties
content complex
Used by
Element E-Document
Model
Children Channel, Charset, DateIssued, EDIOperator, OperatorEAddress, ReceiverCountryCode, ReceiverEAddress, ReceiverGLN, ReceiverID, ReceiverPeppolID, ReceiverRegNum, SenderCountryCode, SenderGLN, SenderID, SenderPeppolID, SenderRegNum, Standard, Test, Version
Instance

<Header>
  <Test>{0,1}</Test>
  <DateIssued>{1,1}</DateIssued>
  <Standard>{0,1}</Standard>
  <Version>{0,1}</Version>
  <Charset>{0,1}</Charset>
  <Channel>{0,1}</Channel>
  <EDIOperator>{0,1}</EDIOperator>
  <SenderID>{1,1}</SenderID>
  <SenderGLN>{0,1}</SenderGLN>
  <SenderPeppolID>{0,1}</SenderPeppolID>
  <SenderRegNum>{1,1}</SenderRegNum>
  <SenderCountryCode>{0,1}</SenderCountryCode>
  <SenderGLN>{1,1}</SenderGLN>
  <SenderPeppolID>{0,1}</SenderPeppolID>
  <SenderRegNum>{1,1}</SenderRegNum>
  <SenderCountryCode>{0,1}</SenderCountryCode>
  <SenderPeppolID>{1,1}</SenderPeppolID>
  <SenderRegNum>{1,1}</SenderRegNum>
  <SenderCountryCode>{0,1}</SenderCountryCode>
  <SenderRegNum>{1,1}</SenderRegNum>
  <SenderCountryCode>{0,1}</SenderCountryCode>
  <ReceiverID>{1,1}</ReceiverID>
  <ReceiverGLN>{0,1}</ReceiverGLN>
  <ReceiverPeppolID>{0,1}</ReceiverPeppolID>
  <ReceiverRegNum>{1,1}</ReceiverRegNum>
  <ReceiverCountryCode>{0,1}</ReceiverCountryCode>
  <ReceiverEAddress>{1,1}</ReceiverEAddress>
  <OperatorEAddress>{0,1}</OperatorEAddress>
  <ReceiverGLN>{1,1}</ReceiverGLN>
  <ReceiverPeppolID>{0,1}</ReceiverPeppolID>
  <ReceiverRegNum>{1,1}</ReceiverRegNum>
  <ReceiverCountryCode>{0,1}</ReceiverCountryCode>
  <ReceiverEAddress>{1,1}</ReceiverEAddress>
  <OperatorEAddress>{0,1}</OperatorEAddress>
  <ReceiverPeppolID>{1,1}</ReceiverPeppolID>
  <ReceiverRegNum>{1,1}</ReceiverRegNum>
  <ReceiverCountryCode>{0,1}</ReceiverCountryCode>
  <ReceiverEAddress>{1,1}</ReceiverEAddress>
  <OperatorEAddress>{0,1}</OperatorEAddress>
  <ReceiverRegNum>{1,1}</ReceiverRegNum>
  <ReceiverCountryCode>{0,1}</ReceiverCountryCode>
  <ReceiverEAddress>{1,1}</ReceiverEAddress>
  <OperatorEAddress>{0,1}</OperatorEAddress>
  <ReceiverEAddress>{1,1}</ReceiverEAddress>
  <OperatorEAddress>{0,1}</OperatorEAddress>
</Header>
Source

<xs:element name="Header">
  <xs:annotation>
    <xs:documentation>Transportation information about the document</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element minOccurs="0" name="Test" type="YesNoType">
        <xs:annotation>
          <xs:documentation>Test flag - indicates that the document has issued for testing purposes</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="DateIssued" type="DateTimeType">
        <xs:annotation>
          <xs:documentation>Issue date of the document</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element minOccurs="0" name="Standard" type="ShortTextType">
        <xs:annotation>
          <xs:documentation>Source standard indicator of the document</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element minOccurs="0" name="Version" type="ShortTextType">
        <xs:annotation>
          <xs:documentation>Used document standard version/release number; for rel. 3.0.1 is the value 3.0.1</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element minOccurs="0" name="Charset" type="ShortTextType">
        <xs:annotation>
          <xs:documentation>Used charset remark (deprecated)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element minOccurs="0" name="Channel" type="ShortTextType">
        <xs:annotation>
          <xs:documentation>Document channel indicator (not for public use)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element minOccurs="0" name="EDIOperator" type="ShortTextType">
        <xs:annotation>
          <xs:documentation>EDI-operator indicator</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:choice>
        <xs:sequence>

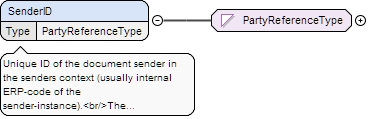

          <xs:element name="SenderID" type="PartyReferenceType">
            <xs:annotation>
              <xs:documentation>Unique ID of the document sender in the senders context (usually internal ERP-code of the sender-instance).
                <br/>The sender ID is compatible with following document parties depending from the document type:
                <br/>MD-documents: owner
                <br/>order,recadv,invrpt(VMI),slsrpt(VMI),proact(VMI): DeliveryParty
                <br/>invoice,desadv,desorder,invrpt(MD),ordrsp: SellerParty,SupplierParty
                <br/>desordrsp: WarehouseParty
                <br/>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element minOccurs="0" name="SenderGLN" type="GLNType">
            <xs:annotation>
              <xs:documentation>The global location number of the sender-instance</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element minOccurs="0" name="SenderPeppolID" type="PeppolIDType">
            <xs:annotation>
              <xs:documentation>The senders PEPPOL ID in the compacted form nnnn:xxxxxx (First 4-digits should be coded using one of the ISO 6523 ICD list.)</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:sequence minOccurs="0">
            <xs:element name="SenderRegNum" type="ShortTextType"/>
            <xs:element minOccurs="0" name="SenderCountryCode" type="CountryCodeType"/>
          </xs:sequence>
        </xs:sequence>
        <xs:sequence>
          <xs:element name="SenderGLN" type="GLNType">
            <xs:annotation>
              <xs:documentation>The global location number of the sender-instance</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element minOccurs="0" name="SenderPeppolID" type="PeppolIDType">
            <xs:annotation>
              <xs:documentation>The senders PEPPOL ID in the compacted form nnnn:xxxxxx (First 4-digits should be coded using one of the ISO 6523 ICD list.)</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:sequence minOccurs="0">
            <xs:element name="SenderRegNum" type="ShortTextType"/>
            <xs:element minOccurs="0" name="SenderCountryCode" type="CountryCodeType"/>
          </xs:sequence>
        </xs:sequence>
        <xs:sequence>
          <xs:element name="SenderPeppolID" type="PeppolIDType">
            <xs:annotation>
              <xs:documentation>The senders PEPPOL ID in the compacted form nnnn:xxxxxx (First 4-digits should be coded using one of the ISO 6523 ICD list.)</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:sequence minOccurs="0">
            <xs:element name="SenderRegNum" type="ShortTextType"/>
            <xs:element minOccurs="0" name="SenderCountryCode" type="CountryCodeType"/>
          </xs:sequence>
        </xs:sequence>
        <xs:sequence>
          <xs:element name="SenderRegNum" type="ShortTextType"/>
          <xs:element minOccurs="0" name="SenderCountryCode" type="CountryCodeType"/>
        </xs:sequence>
      </xs:choice>
      <xs:choice>
        <xs:sequence>
          <xs:element name="ReceiverID" type="PartyReferenceType"/>
          <xs:element minOccurs="0" name="ReceiverGLN" type="GLNType"/>
          <xs:element minOccurs="0" name="ReceiverPeppolID" type="PeppolIDType">
            <xs:annotation>
              <xs:documentation>The senders PEPPOL ID in the compacted form nnnn:xxxxxx (First 4-digits should be coded using one of the ISO 6523 ICD list.)</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:sequence minOccurs="0">
            <xs:element name="ReceiverRegNum" type="ShortTextType"/>
            <xs:element minOccurs="0" name="ReceiverCountryCode" type="CountryCodeType"/>
          </xs:sequence>
          <xs:sequence minOccurs="0">
            <!-- 3.1.9: sequence added -->
            <xs:element name="ReceiverEAddress" type="PeppolIDType">
              <xs:annotation>
                <xs:documentation>Receiver e-address in network</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element minOccurs="0" name="OperatorEAddress" type="PeppolIDType">
              <xs:annotation>
                <xs:documentation>Receiver network operator e-address in network</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:sequence>
        <xs:sequence>
          <xs:element name="ReceiverGLN" type="GLNType"/>
          <xs:element minOccurs="0" name="ReceiverPeppolID" type="PeppolIDType">
            <xs:annotation>
              <xs:documentation>The senders PEPPOL ID in the compacted form nnnn:xxxxxx (First 4-digits should be coded using one of the ISO 6523 ICD list.)</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:sequence minOccurs="0">
            <xs:element name="ReceiverRegNum" type="ShortTextType"/>
            <xs:element minOccurs="0" name="ReceiverCountryCode" type="CountryCodeType"/>
          </xs:sequence>
          <xs:sequence minOccurs="0">
            <!-- 3.1.9: sequence added -->
            <xs:element name="ReceiverEAddress" type="PeppolIDType">
              <xs:annotation>
                <xs:documentation>Receiver e-address in network</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element minOccurs="0" name="OperatorEAddress" type="PeppolIDType">
              <xs:annotation>
                <xs:documentation>Receiver network operator e-address in network</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:sequence>
        <xs:sequence>
          <xs:element name="ReceiverPeppolID" type="PeppolIDType">
            <xs:annotation>
              <xs:documentation>The senders PEPPOL ID in the compacted form nnnn:xxxxxx (First 4-digits should be coded using one of the ISO 6523 ICD list.)</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:sequence minOccurs="0">
            <xs:element name="ReceiverRegNum" type="ShortTextType"/>
            <xs:element minOccurs="0" name="ReceiverCountryCode" type="CountryCodeType"/>
          </xs:sequence>
          <xs:sequence minOccurs="0">
            <!-- 3.1.9: sequence added-->
            <xs:element name="ReceiverEAddress" type="PeppolIDType">
              <xs:annotation>
                <xs:documentation>Receiver e-address in network</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element minOccurs="0" name="OperatorEAddress" type="PeppolIDType">
              <xs:annotation>
                <xs:documentation>Receiver network operator e-address in network</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:sequence>
        <xs:sequence>
          <xs:element name="ReceiverRegNum" type="ShortTextType"/>
          <xs:element minOccurs="0" name="ReceiverCountryCode" type="CountryCodeType"/>
          <xs:sequence minOccurs="0">
            <!-- 3.1.9: sequence added -->
            <xs:element name="ReceiverEAddress" type="PeppolIDType">
              <xs:annotation>
                <xs:documentation>Receiver e-address in network</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element minOccurs="0" name="OperatorEAddress" type="PeppolIDType">
              <xs:annotation>
                <xs:documentation>Receiver network operator e-address in network</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:sequence>
        <xs:sequence>
          <!-- 3.1.9: sequence added -->
          <xs:element name="ReceiverEAddress" type="PeppolIDType">
            <xs:annotation>
              <xs:documentation>Receiver e-address in network</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element minOccurs="0" name="OperatorEAddress" type="PeppolIDType">
            <xs:annotation>
              <xs:documentation>Receiver network operator e-address in network</xs:documentation>
            </xs:annotation>
          </xs:element>
        </xs:sequence>
      </xs:choice>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element Header / Test
Namespace No namespace
Annotations

Test flag - indicates that the document has issued for testing purposes
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_YesNoType.tmp#YesNoType
Type YesNoType
Properties
content simple
minOccurs 0
Facets
pattern (\c+) & ((YES)|(NO)|(yes)|(no))
Source

<xs:element minOccurs="0" name="Test" type="YesNoType">
  <xs:annotation>
    <xs:documentation>Test flag - indicates that the document has issued for testing purposes</xs:documentation>
  </xs:annotation>
</xs:element>
Element Header / DateIssued
Namespace No namespace
Annotations

Issue date of the document
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_DateTimeType.tmp#DateTimeType
Type DateTimeType
Properties
content simple
Facets
minLength 10
maxLength 29
pattern \d{4,}-\d\d-\d\d(T\d\d:\d\d:\d\d(\.\d{1,3})?)?((\+|-)\d\d:\d\d|Z)?|\d{4,}-\d\d-\d\d((\+|-)\d\d:\d\d|Z)?
Source

<xs:element name="DateIssued" type="DateTimeType">
  <xs:annotation>
    <xs:documentation>Issue date of the document</xs:documentation>
  </xs:annotation>
</xs:element>
Element Header / Standard
Namespace No namespace
Annotations

Source standard indicator of the document
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
minOccurs 0
Facets
maxLength 50
Source

<xs:element minOccurs="0" name="Standard" type="ShortTextType">
  <xs:annotation>
    <xs:documentation>Source standard indicator of the document</xs:documentation>
  </xs:annotation>
</xs:element>
Element Header / Version
Namespace No namespace
Annotations

Used document standard version/release number; for rel. 3.0.1 is the value 3.0.1
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
minOccurs 0
Facets
maxLength 50
Source

<xs:element minOccurs="0" name="Version" type="ShortTextType">
  <xs:annotation>
    <xs:documentation>Used document standard version/release number; for rel. 3.0.1 is the value 3.0.1</xs:documentation>
  </xs:annotation>
</xs:element>
Element Header / Charset
Namespace No namespace
Annotations

Used charset remark (deprecated)
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
minOccurs 0
Facets
maxLength 50
Source

<xs:element minOccurs="0" name="Charset" type="ShortTextType">
  <xs:annotation>
    <xs:documentation>Used charset remark (deprecated)</xs:documentation>
  </xs:annotation>
</xs:element>
Element Header / Channel
Namespace No namespace
Annotations

Document channel indicator (not for public use)
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
minOccurs 0
Facets
maxLength 50
Source

<xs:element minOccurs="0" name="Channel" type="ShortTextType">
  <xs:annotation>
    <xs:documentation>Document channel indicator (not for public use)</xs:documentation>
  </xs:annotation>
</xs:element>
Element Header / EDIOperator
Namespace No namespace
Annotations

EDI-operator indicator
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
minOccurs 0
Facets
maxLength 50
Source

<xs:element minOccurs="0" name="EDIOperator" type="ShortTextType">
  <xs:annotation>
    <xs:documentation>EDI-operator indicator</xs:documentation>
  </xs:annotation>
</xs:element>
Element Header / SenderID
Namespace No namespace
Annotations

Unique ID of the document sender in the senders context (usually internal ERP-code of the sender-instance).<br/>The sender ID is compatible with following document parties depending from the document type:<br/>MD-documents: owner<br/>order,recadv,invrpt(VMI),slsrpt(VMI),proact(VMI): DeliveryParty<br/>invoice,desadv,desorder,invrpt(MD),ordrsp: SellerParty,SupplierParty<br/>desordrsp: WarehouseParty<br/>
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_PartyReferenceType.tmp#PartyReferenceType
Type PartyReferenceType
Type hierarchy
Properties
content simple
Facets
maxLength 50
pattern [^,]*
Source

<xs:element name="SenderID" type="PartyReferenceType">
  <xs:annotation>
    <xs:documentation>Unique ID of the document sender in the senders context (usually internal ERP-code of the sender-instance).
      <br/>The sender ID is compatible with following document parties depending from the document type:
      <br/>MD-documents: owner
      <br/>order,recadv,invrpt(VMI),slsrpt(VMI),proact(VMI): DeliveryParty
      <br/>invoice,desadv,desorder,invrpt(MD),ordrsp: SellerParty,SupplierParty
      <br/>desordrsp: WarehouseParty
      <br/>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element Header / SenderGLN
Namespace No namespace
Annotations

The global location number of the sender-instance
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_GLNType.tmp#GLNType
Type GLNType
Properties
content simple
minOccurs 0
Facets
length 13
pattern \d+
Source

<xs:element minOccurs="0" name="SenderGLN" type="GLNType">
  <xs:annotation>
    <xs:documentation>The global location number of the sender-instance</xs:documentation>
  </xs:annotation>
</xs:element>
Element Header / SenderPeppolID
Namespace No namespace
Annotations

The senders PEPPOL ID in the compacted form nnnn:xxxxxx (First 4-digits should be coded using one of the ISO 6523 ICD list.)
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_PeppolIDType.tmp#PeppolIDType
Type PeppolIDType
Properties
content simple
minOccurs 0
Facets
maxLength 69
pattern \d{4}:.+
Source

<xs:element minOccurs="0" name="SenderPeppolID" type="PeppolIDType">
  <xs:annotation>
    <xs:documentation>The senders PEPPOL ID in the compacted form nnnn:xxxxxx (First 4-digits should be coded using one of the ISO 6523 ICD list.)</xs:documentation>
  </xs:annotation>
</xs:element>
Element Header / SenderRegNum
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
Facets
maxLength 50
Source

<xs:element name="SenderRegNum" type="ShortTextType"/>
Element Header / SenderCountryCode
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_CountryCodeType.tmp#CountryCodeType
Type CountryCodeType
Properties
content simple
minOccurs 0
Facets
minLength 2
maxLength 2
pattern [a-z]{2,2}|[A-Z]{2,2}
Source

<xs:element minOccurs="0" name="SenderCountryCode" type="CountryCodeType"/>
Element Header / ReceiverID
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_PartyReferenceType.tmp#PartyReferenceType
Type PartyReferenceType
Type hierarchy
Properties
content simple
Facets
maxLength 50
pattern [^,]*
Source

<xs:element name="ReceiverID" type="PartyReferenceType"/>
Element Header / ReceiverGLN
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_GLNType.tmp#GLNType
Type GLNType
Properties
content simple
minOccurs 0
Facets
length 13
pattern \d+
Source

<xs:element minOccurs="0" name="ReceiverGLN" type="GLNType"/>
Element Header / ReceiverPeppolID
Namespace No namespace
Annotations

The senders PEPPOL ID in the compacted form nnnn:xxxxxx (First 4-digits should be coded using one of the ISO 6523 ICD list.)
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_PeppolIDType.tmp#PeppolIDType
Type PeppolIDType
Properties
content simple
minOccurs 0
Facets
maxLength 69
pattern \d{4}:.+
Source

<xs:element minOccurs="0" name="ReceiverPeppolID" type="PeppolIDType">
  <xs:annotation>
    <xs:documentation>The senders PEPPOL ID in the compacted form nnnn:xxxxxx (First 4-digits should be coded using one of the ISO 6523 ICD list.)</xs:documentation>
  </xs:annotation>
</xs:element>
Element Header / ReceiverRegNum
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
Facets
maxLength 50
Source

<xs:element name="ReceiverRegNum" type="ShortTextType"/>
Element Header / ReceiverCountryCode
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_CountryCodeType.tmp#CountryCodeType
Type CountryCodeType
Properties
content simple
minOccurs 0
Facets
minLength 2
maxLength 2
pattern [a-z]{2,2}|[A-Z]{2,2}
Source

<xs:element minOccurs="0" name="ReceiverCountryCode" type="CountryCodeType"/>
Element Header / ReceiverEAddress
Namespace No namespace
Annotations

Receiver e-address in network
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_PeppolIDType.tmp#PeppolIDType
Type PeppolIDType
Properties
content simple
Facets
maxLength 69
pattern \d{4}:.+
Source

<xs:element name="ReceiverEAddress" type="PeppolIDType">
  <xs:annotation>
    <xs:documentation>Receiver e-address in network</xs:documentation>
  </xs:annotation>
</xs:element>
Element Header / OperatorEAddress
Namespace No namespace
Annotations

Receiver network operator e-address in network
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_PeppolIDType.tmp#PeppolIDType
Type PeppolIDType
Properties
content simple
minOccurs 0
Facets
maxLength 69
pattern \d{4}:.+
Source

<xs:element minOccurs="0" name="OperatorEAddress" type="PeppolIDType">
  <xs:annotation>
    <xs:documentation>Receiver network operator e-address in network</xs:documentation>
  </xs:annotation>
</xs:element>
XML Schema documentation generated by ® XML Developer.
