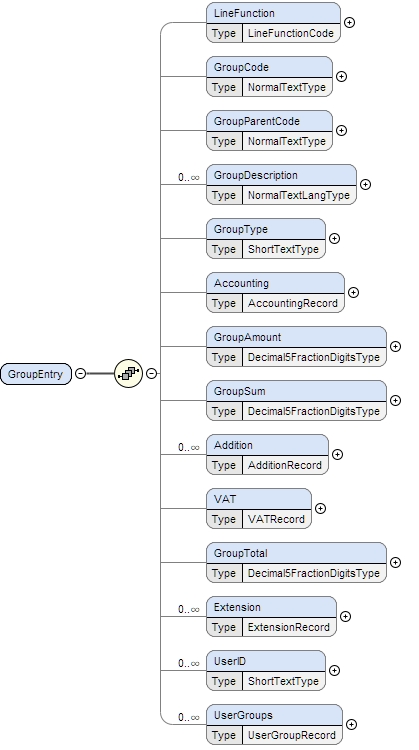

Element GroupEntry
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Element_GroupEntry.tmp#GroupEntry_LineFunctione-document-3_1_11_xsd_Element_GroupEntry.tmp#GroupEntry_GroupCodee-document-3_1_11_xsd_Element_GroupEntry.tmp#GroupEntry_GroupParentCodee-document-3_1_11_xsd_Element_GroupEntry.tmp#GroupEntry_GroupDescriptione-document-3_1_11_xsd_Element_GroupEntry.tmp#GroupEntry_GroupTypee-document-3_1_11_xsd_Element_GroupEntry.tmp#GroupEntry_Accountinge-document-3_1_11_xsd_Element_GroupEntry.tmp#GroupEntry_GroupAmounte-document-3_1_11_xsd_Element_GroupEntry.tmp#GroupEntry_GroupSume-document-3_1_11_xsd_Element_GroupEntry.tmp#GroupEntry_Additione-document-3_1_11_xsd_Element_GroupEntry.tmp#GroupEntry_VATe-document-3_1_11_xsd_Element_GroupEntry.tmp#GroupEntry_GroupTotale-document-3_1_11_xsd_Element_GroupEntry.tmp#GroupEntry_Extensione-document-3_1_11_xsd_Element_GroupEntry.tmp#GroupEntry_UserIDe-document-3_1_11_xsd_Element_GroupEntry.tmp#GroupEntry_UserGroups
Properties
content complex
Used by
Element DocumentItem
Model
Children Accounting, Addition, Extension, GroupAmount, GroupCode, GroupDescription, GroupParentCode, GroupSum, GroupTotal, GroupType, LineFunction, UserGroups, UserID, VAT
Instance

<GroupEntry>
  <LineFunction>{0,1}</LineFunction>
  <GroupCode>{0,1}</GroupCode>
  <GroupParentCode>{0,1}</GroupParentCode>
  <GroupDescription lang="">{0,unbounded}</GroupDescription>
  <GroupType>{0,1}</GroupType>
  <Accounting>{0,1}</Accounting>
  <GroupAmount>{0,1}</GroupAmount>
  <GroupSum>{0,1}</GroupSum>
  <Addition addCode="" included="" type="">{0,unbounded}</Addition>
  <VAT vatID="">{0,1}</VAT>
  <GroupTotal>{0,1}</GroupTotal>
  <Extension extensionId="" lang="">{0,unbounded}</Extension>
  <UserID>{0,unbounded}</UserID>
  <UserGroups>{0,unbounded}</UserGroups>
</GroupEntry>
Source

<xs:element name="GroupEntry">
  <xs:complexType>
    <xs:sequence>
      <xs:element minOccurs="0" name="LineFunction" type="LineFunctionCode"/>
      <xs:element minOccurs="0" name="GroupCode" type="NormalTextType"/>
      <xs:element minOccurs="0" name="GroupParentCode" type="NormalTextType"/>
      <xs:element minOccurs="0" maxOccurs="unbounded" name="GroupDescription" type="NormalTextLangType"/>
      <xs:element minOccurs="0" name="GroupType" type="ShortTextType"/>
      <xs:element minOccurs="0" name="Accounting" type="AccountingRecord"/>
      <xs:element minOccurs="0" name="GroupAmount" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" name="GroupSum" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" maxOccurs="unbounded" name="Addition" type="AdditionRecord"/>
      <xs:element minOccurs="0" name="VAT" type="VATRecord"/>
      <xs:element minOccurs="0" name="GroupTotal" type="Decimal5FractionDigitsType"/>
      <xs:element minOccurs="0" maxOccurs="unbounded" name="Extension" type="ExtensionRecord"/>
      <xs:element minOccurs="0" maxOccurs="unbounded" name="UserID" type="ShortTextType"/>
      <xs:element minOccurs="0" maxOccurs="unbounded" name="UserGroups" type="UserGroupRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element GroupEntry / LineFunction
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_LineFunctionCode.tmp#LineFunctionCode
Type LineFunctionCode
Properties
content simple
minOccurs 0
Facets
pattern (update)|(delete)|(original)|(UPDATE)|(DELETE)|(ORIGINAL)|(Update)|(Delete)|(Original)
Source

<xs:element minOccurs="0" name="LineFunction" type="LineFunctionCode"/>
Element GroupEntry / GroupCode
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_NormalTextType.tmp#NormalTextType
Type NormalTextType
Properties
content simple
minOccurs 0
Facets
maxLength 100
Source

<xs:element minOccurs="0" name="GroupCode" type="NormalTextType"/>
Element GroupEntry / GroupParentCode
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_NormalTextType.tmp#NormalTextType
Type NormalTextType
Properties
content simple
minOccurs 0
Facets
maxLength 100
Source

<xs:element minOccurs="0" name="GroupParentCode" type="NormalTextType"/>

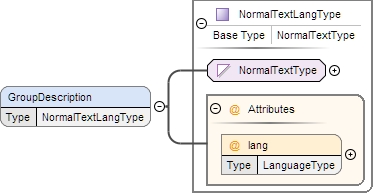

Element GroupEntry / GroupDescription
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_NormalTextType.tmp#NormalTextTypee-document-3_1_11_xsd_Complex_Type_NormalTextLangType.tmp#NormalTextLangType_lange-document-3_1_11_xsd_Complex_Type_NormalTextLangType.tmp#NormalTextLangType
Type NormalTextLangType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
lang LanguageType optional
Source

<xs:element minOccurs="0" maxOccurs="unbounded" name="GroupDescription" type="NormalTextLangType"/>
Element GroupEntry / GroupType
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
minOccurs 0
Facets
maxLength 50
Source

<xs:element minOccurs="0" name="GroupType" type="ShortTextType"/>

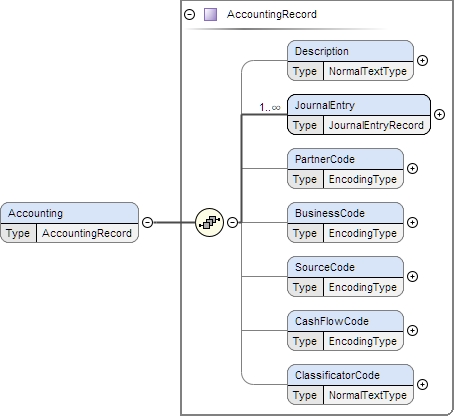

Element GroupEntry / Accounting
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_AccountingRecord.tmp#AccountingRecord_Descriptione-document-3_1_11_xsd_Complex_Type_AccountingRecord.tmp#AccountingRecord_JournalEntrye-document-3_1_11_xsd_Complex_Type_AccountingRecord.tmp#AccountingRecord_PartnerCodee-document-3_1_11_xsd_Complex_Type_AccountingRecord.tmp#AccountingRecord_BusinessCodee-document-3_1_11_xsd_Complex_Type_AccountingRecord.tmp#AccountingRecord_SourceCodee-document-3_1_11_xsd_Complex_Type_AccountingRecord.tmp#AccountingRecord_CashFlowCodee-document-3_1_11_xsd_Complex_Type_AccountingRecord.tmp#AccountingRecord_ClassificatorCodee-document-3_1_11_xsd_Complex_Type_AccountingRecord.tmp#AccountingRecord
Type AccountingRecord
Properties
content complex
minOccurs 0
Model
Children BusinessCode, CashFlowCode, ClassificatorCode, Description, JournalEntry, PartnerCode, SourceCode
Instance

<Accounting>
  <Description>{0,1}</Description>
  <JournalEntry>{1,unbounded}</JournalEntry>
  <PartnerCode>{0,1}</PartnerCode>
  <BusinessCode>{0,1}</BusinessCode>
  <SourceCode>{0,1}</SourceCode>
  <CashFlowCode>{0,1}</CashFlowCode>
  <ClassificatorCode>{0,1}</ClassificatorCode>
</Accounting>
Source

<xs:element minOccurs="0" name="Accounting" type="AccountingRecord"/>
Element GroupEntry / GroupAmount
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="GroupAmount" type="Decimal5FractionDigitsType"/>
Element GroupEntry / GroupSum
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="GroupSum" type="Decimal5FractionDigitsType"/>

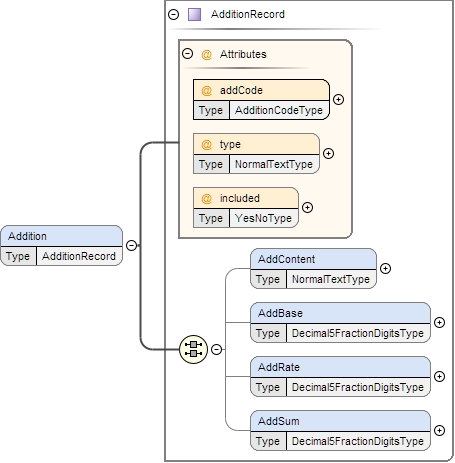

Element GroupEntry / Addition
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_AdditionRecord.tmp#AdditionRecord_addCodee-document-3_1_11_xsd_Complex_Type_AdditionRecord.tmp#AdditionRecord_typee-document-3_1_11_xsd_Complex_Type_AdditionRecord.tmp#AdditionRecord_includede-document-3_1_11_xsd_Complex_Type_AdditionRecord.tmp#AdditionRecord_AddContente-document-3_1_11_xsd_Complex_Type_AdditionRecord.tmp#AdditionRecord_AddBasee-document-3_1_11_xsd_Complex_Type_AdditionRecord.tmp#AdditionRecord_AddRatee-document-3_1_11_xsd_Complex_Type_AdditionRecord.tmp#AdditionRecord_AddSume-document-3_1_11_xsd_Complex_Type_AdditionRecord.tmp#AdditionRecord
Type AdditionRecord
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children AddBase, AddContent, AddRate, AddSum
Instance

<Addition addCode="" included="" type="">
  <AddContent>{0,1}</AddContent>
  <AddBase>{0,1}</AddBase>
  <AddRate>{0,1}</AddRate>
  <AddSum>{0,1}</AddSum>
</Addition>
Attributes
QName Type Use
addCode AdditionCodeType required
included YesNoType optional
type NormalTextType optional
Source

<xs:element minOccurs="0" maxOccurs="unbounded" name="Addition" type="AdditionRecord"/>

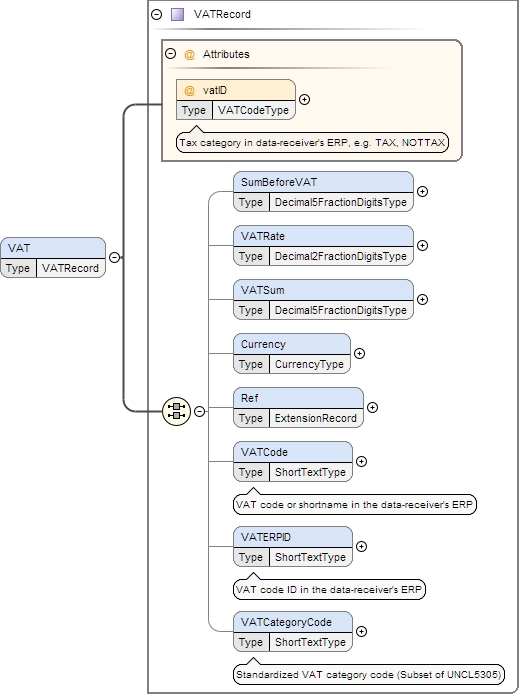

Element GroupEntry / VAT
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_VATRecord.tmp#VATRecord_vatIDe-document-3_1_11_xsd_Complex_Type_VATRecord.tmp#VATRecord_SumBeforeVATe-document-3_1_11_xsd_Complex_Type_VATRecord.tmp#VATRecord_VATRatee-document-3_1_11_xsd_Complex_Type_VATRecord.tmp#VATRecord_VATSume-document-3_1_11_xsd_Complex_Type_VATRecord.tmp#VATRecord_Currencye-document-3_1_11_xsd_Complex_Type_VATRecord.tmp#VATRecord_Refe-document-3_1_11_xsd_Complex_Type_VATRecord.tmp#VATRecord_VATCodee-document-3_1_11_xsd_Complex_Type_VATRecord.tmp#VATRecord_VATERPIDe-document-3_1_11_xsd_Complex_Type_VATRecord.tmp#VATRecord_VATCategoryCodee-document-3_1_11_xsd_Complex_Type_VATRecord.tmp#VATRecord
Type VATRecord
Properties
content complex
minOccurs 0
Model
Children Currency, Ref, SumBeforeVAT, VATCategoryCode, VATCode, VATERPID, VATRate, VATSum
Instance

<VAT vatID="">
  <SumBeforeVAT>{0,1}</SumBeforeVAT>
  <VATRate>{0,1}</VATRate>
  <VATSum>{0,1}</VATSum>
  <Currency>{0,1}</Currency>
  <Ref extensionId="" lang="">{0,1}</Ref>
  <VATCode>{0,1}</VATCode>
  <VATERPID>{0,1}</VATERPID>
  <VATCategoryCode>{0,1}</VATCategoryCode>
</VAT>
Attributes
QName Type Use Annotation
vatID VATCodeType optional
Tax category in data-receiver's ERP, e.g. TAX, NOTTAX
Source

<xs:element minOccurs="0" name="VAT" type="VATRecord"/>
Element GroupEntry / GroupTotal
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_Decimal5FractionDigitsType.tmp#Decimal5FractionDigitsType
Type Decimal5FractionDigitsType
Properties
content simple
minOccurs 0
Facets
fractionDigits 5
Source

<xs:element minOccurs="0" name="GroupTotal" type="Decimal5FractionDigitsType"/>

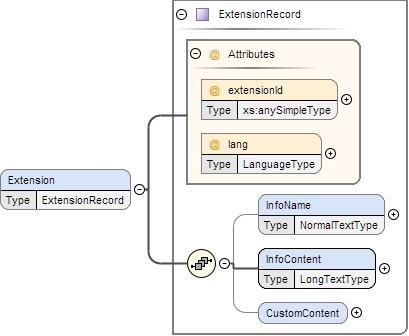

Element GroupEntry / Extension
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_ExtensionRecord.tmp#ExtensionRecord_extensionIde-document-3_1_11_xsd_Complex_Type_ExtensionRecord.tmp#ExtensionRecord_lange-document-3_1_11_xsd_Complex_Type_ExtensionRecord.tmp#ExtensionRecord_InfoNamee-document-3_1_11_xsd_Complex_Type_ExtensionRecord.tmp#ExtensionRecord_InfoContente-document-3_1_11_xsd_Complex_Type_ExtensionRecord.tmp#ExtensionRecord_CustomContente-document-3_1_11_xsd_Complex_Type_ExtensionRecord.tmp#ExtensionRecord
Type ExtensionRecord
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children CustomContent, InfoContent, InfoName
Instance

<Extension extensionId="" lang="">
  <InfoName>{0,1}</InfoName>
  <InfoContent>{1,1}</InfoContent>
  <CustomContent>{0,1}</CustomContent>
</Extension>
Attributes
QName Type Use
extensionId optional
lang LanguageType optional
Source

<xs:element minOccurs="0" maxOccurs="unbounded" name="Extension" type="ExtensionRecord"/>
Element GroupEntry / UserID
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Simple_Type_ShortTextType.tmp#ShortTextType
Type ShortTextType
Properties
content simple
minOccurs 0
maxOccurs unbounded
Facets
maxLength 50
Source

<xs:element minOccurs="0" maxOccurs="unbounded" name="UserID" type="ShortTextType"/>

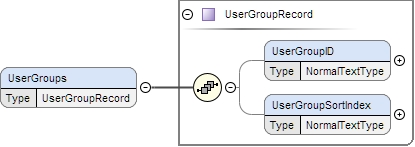

Element GroupEntry / UserGroups
Namespace No namespace
Diagram
Diagrame-document-3_1_11_xsd_Complex_Type_UserGroupRecord.tmp#UserGroupRecord_UserGroupIDe-document-3_1_11_xsd_Complex_Type_UserGroupRecord.tmp#UserGroupRecord_UserGroupSortIndexe-document-3_1_11_xsd_Complex_Type_UserGroupRecord.tmp#UserGroupRecord
Type UserGroupRecord
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children UserGroupID, UserGroupSortIndex
Instance

<UserGroups>
  <UserGroupID>{0,1}</UserGroupID>
  <UserGroupSortIndex>{0,1}</UserGroupSortIndex>
</UserGroups>
Source

<xs:element minOccurs="0" maxOccurs="unbounded" name="UserGroups" type="UserGroupRecord"/>
