Namespace
No namespace
Diagram
Used by
Elements
DocumentParties/AssortmentFeeParty , DocumentParties/BuyerParty , DocumentParties/CampaignFeeParty , DocumentParties/DeliveryParty , DocumentParties/DespatchParty , DocumentParties/FactorParty , DocumentParties/InvoiceeParty , DocumentParties/InvoicingParty , DocumentParties/OrderParty , DocumentParties/PayToParty , DocumentParties/PayerParty , DocumentParties/RecipientParty , DocumentParties/ReminderServiceParty , DocumentParties/RoamingParty , DocumentParties/SellerParty , DocumentParties/SupplierParty , DocumentParties/TransportParty , DocumentParties/UltimateCustomerParty , DocumentParties/WarehouseParty , ItemParties/BuyerParty , ItemParties/DeliveryParty , ItemParties/DespatchParty , ItemParties/FactorParty , ItemParties/InvoiceeParty , ItemParties/InvoicingParty , ItemParties/ManufacturerParty , ItemParties/OrderParty , ItemParties/PayToParty , ItemParties/PayerParty , ItemParties/RecipientParty , ItemParties/ReminderServiceParty , ItemParties/SellerParty , ItemParties/SupplierParty , ItemParties/TransportParty , ItemParties/UltimateCustomerParty , ItemParties/WarehouseParty , ItemReserveParties/BuyerParty , ItemReserveParties/DeliveryParty , ItemReserveParties/DespatchParty , ItemReserveParties/FactorParty , ItemReserveParties/InvoiceeParty , ItemReserveParties/InvoicingParty , ItemReserveParties/OrderParty , ItemReserveParties/PayToParty , ItemReserveParties/PayerParty , ItemReserveParties/RecipientParty , ItemReserveParties/ReminderServiceParty , ItemReserveParties/SellerParty , ItemReserveParties/SupplierParty , ItemReserveParties/TransportParty , ItemReserveParties/UltimateCustomerParty , ItemReserveParties/WarehouseParty
Model
PartyCode{0,1} ,
PartyPeppolId{0,1} ,
Name{0,1} ,
DepID{0,1} ,
RegNum{0,1} ,
VATRegNum{0,1} ,
AdditionalTaxId{0,1} ,
PartyGroupCode{0,1} ,
PartyGroupName{0,1} ,
GLN{0,1} ,
UserID{0,1} ,
MDRefCode{0,1} ,

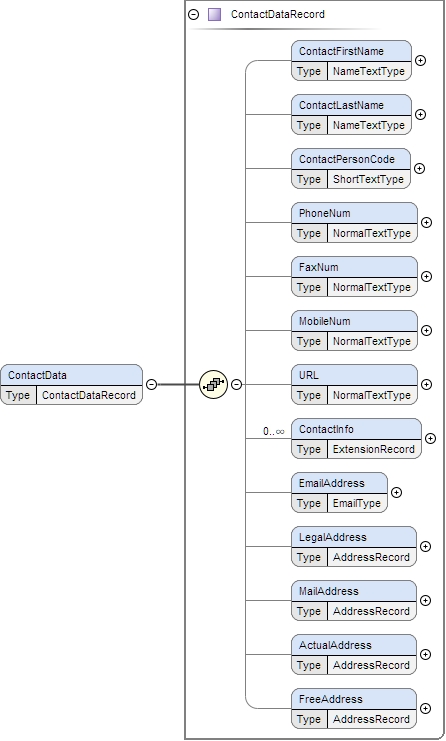

ContactData{0,1} ,

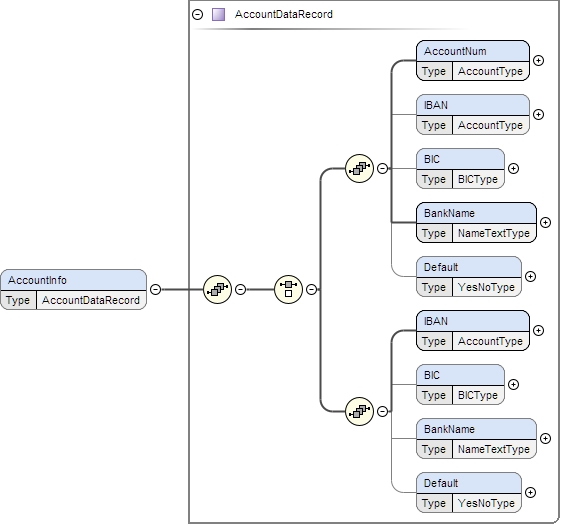

AccountInfo* ,
ExciseWarehouseHolderNum{0,1} ,
ExciseWarehouseNum{0,1} ,
LicenceInfo{0,1} ,
AdditionalInfo{0,1}
Children
AccountInfo , AdditionalInfo , AdditionalTaxId , ContactData , DepID , ExciseWarehouseHolderNum , ExciseWarehouseNum , GLN , LicenceInfo , MDRefCode , Name , PartyCode , PartyGroupCode , PartyGroupName , PartyPeppolId , RegNum , UserID , VATRegNum
Attributes
Source
<xs:complexType name= "PartyRecord" >
<xs:sequence >
<xs:element minOccurs= "0" name= "PartyCode" type= "PartyReferenceType" />
<xs:element minOccurs= "0" name= "PartyPeppolId" type= "PeppolIDType" />
<xs:element minOccurs= "0" name= "Name" type= "NameTextType" />
<xs:element minOccurs= "0" name= "DepID" type= "NormalTextType" />
<xs:element minOccurs= "0" name= "RegNum" type= "ShortTextType" />
<xs:element minOccurs= "0" name= "VATRegNum" type= "ShortTextType" />
<!-- 3.1.9: TO BE ADDED: START -->
<xs:element minOccurs= "0" name= "AdditionalTaxId" >
<xs:annotation >
<xs:documentation > Additional identification of the party for tax purposes </xs:documentation>
</xs:annotation>
<xs:complexType >
<xs:simpleContent >
<xs:extension base= "NormalTextType" >
<xs:attribute name= "type" type= "NormalTextType" use= "optional" />
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<!-- 3.1.9: TO BE ADDED: END -->
<xs:element minOccurs= "0" name= "PartyGroupCode" type= "ShortTextType" />
<xs:element minOccurs= "0" name= "PartyGroupName" type= "NormalTextType" />
<xs:element minOccurs= "0" name= "GLN" type= "GLNType" />
<xs:element minOccurs= "0" name= "UserID" type= "ShortTextType" />
<xs:element minOccurs= "0" maxOccurs= "1" name= "MDRefCode" type= "ShortTextType" />
<xs:element minOccurs= "0" name= "ContactData" type= "ContactDataRecord" />
<xs:element minOccurs= "0" maxOccurs= "unbounded" name= "AccountInfo" type= "AccountDataRecord" />
<xs:element minOccurs= "0" name= "ExciseWarehouseHolderNum" type= "NormalTextType" />
<xs:element minOccurs= "0" name= "ExciseWarehouseNum" type= "NormalTextType" />
<xs:element minOccurs= "0" name= "LicenceInfo" type= "LicenceInfoRecordType" />
<xs:element minOccurs= "0" name= "AdditionalInfo" type= "AdditionalInfoRecord" />
</xs:sequence>
<xs:attribute name= "context" type= "PartyContextType" use= "optional" />
</xs:complexType>
