Namespace
No namespace
Diagram
Used by
Model
LineFunction{0,1} ,
GroupPartyCode{0,1} ,
PartyCode{0,1} ,
PartyGLN{0,1} ,
SellerItemCode{0,1} ,
ItemGTIN{0,1} ,
BuyerItemCode{0,1} ,
ItemUnit{0,1} ,
ItemPartyPrice{0,1} ,
ItemPartyBasePrice{0,1} ,
PriceCurrency{0,1} ,
ItemAdditionRate{0,1} ,
ItemVAT{0,1} ,
ItemPartyCampaignDescription{0,1} ,
ItemPartyCampaignCode{0,1} ,
ItemPartyCampaignProductCode{0,1} ,
ItemPartyCampaignPrice{0,1} ,
ItemPartyCampaignStartDate{0,1} ,
ItemPartyCampaignEndDate{0,1} ,
ReplacementItemGTIN{0,1} ,
ItemOrderInformation{0,1} ,
BeginDate{0,1} ,
EndDate{0,1} ,
ProductTypeEntry{0,1} ,
ItemMinAmount{0,1} ,
ItemMaxAmount{0,1} ,
ItemMinStockSize{0,1} ,
ItemMaxStockSize{0,1} ,
BuyerItemDescription* ,
SellerItemDescription* ,
ItemPartyRetailPrice{0,1} ,
ItemPartyRetailPriceVAT{0,1} ,
ItemRefInfo{0,1} ,
ItemChangeReasons{0,1} ,
ItemIsReplacableInEshop{0,1} ,
ItemPriceTypes{0,1} ,
PartyName{0,1} ,
IsItemConsignmentArticle{0,1} ,
AdditionalInfo{0,1} ,
ItemMinimumLifeSpanFromTimeOfArrival{0,1} ,
OrderingLeadTime{0,1} ,
PurchaseManagerName{0,1} ,
IncotermInfo{0,1}
Children
AdditionalInfo , BeginDate , BuyerItemCode , BuyerItemDescription , EndDate , GroupPartyCode , IncotermInfo , IsItemConsignmentArticle , ItemAdditionRate , ItemChangeReasons , ItemGTIN , ItemIsReplacableInEshop , ItemMaxAmount , ItemMaxStockSize , ItemMinAmount , ItemMinStockSize , ItemMinimumLifeSpanFromTimeOfArrival , ItemOrderInformation , ItemPartyBasePrice , ItemPartyCampaignCode , ItemPartyCampaignDescription , ItemPartyCampaignEndDate , ItemPartyCampaignPrice , ItemPartyCampaignProductCode , ItemPartyCampaignStartDate , ItemPartyPrice , ItemPartyRetailPrice , ItemPartyRetailPriceVAT , ItemPriceTypes , ItemRefInfo , ItemUnit , ItemVAT , LineFunction , OrderingLeadTime , PartyCode , PartyGLN , PartyName , PriceCurrency , ProductTypeEntry , PurchaseManagerName , ReplacementItemGTIN , SellerItemCode , SellerItemDescription
Source
<xs:complexType name= "ItemPartyRecord" >
<xs:sequence >
<xs:element minOccurs= "0" name= "LineFunction" type= "LineFunctionCode" />
<xs:element minOccurs= "0" name= "GroupPartyCode" type= "PartyReferenceType" />

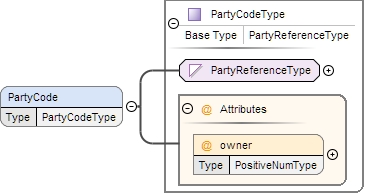

<xs:element minOccurs= "0" name= "PartyCode" type= "PartyCodeType" />
<xs:element minOccurs= "0" name= "PartyGLN" type= "GLNType" />
<xs:element minOccurs= "0" name= "SellerItemCode" type= "ShortTextType" />
<xs:element minOccurs= "0" name= "ItemGTIN" type= "GTINType" />
<xs:element minOccurs= "0" name= "BuyerItemCode" type= "ShortTextType" />
<xs:element minOccurs= "0" name= "ItemUnit" type= "ShortTextType" />
<xs:element minOccurs= "0" name= "ItemPartyPrice" type= "Decimal5FractionDigitsType" />
<xs:element minOccurs= "0" name= "ItemPartyBasePrice" type= "Decimal5FractionDigitsType" />
<xs:element minOccurs= "0" name= "PriceCurrency" type= "CurrencyType" />
<xs:element minOccurs= "0" name= "ItemAdditionRate" type= "Decimal5FractionDigitsType" />

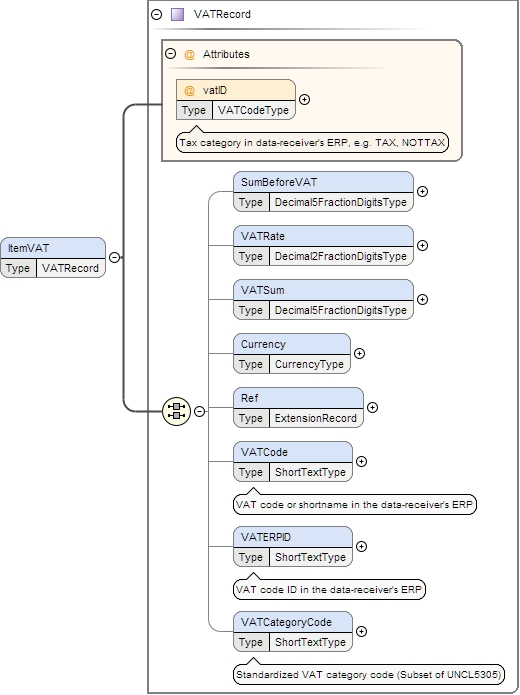

<xs:element minOccurs= "0" name= "ItemVAT" type= "VATRecord" />
<xs:element minOccurs= "0" name= "ItemPartyCampaignDescription" type= "LongTextType" />
<xs:element minOccurs= "0" name= "ItemPartyCampaignCode" type= "ShortTextType" />
<xs:element minOccurs= "0" name= "ItemPartyCampaignProductCode" type= "ShortTextType" />
<xs:element minOccurs= "0" name= "ItemPartyCampaignPrice" type= "Decimal5FractionDigitsType" />
<xs:element minOccurs= "0" name= "ItemPartyCampaignStartDate" type= "DateTimeType" />
<xs:element minOccurs= "0" name= "ItemPartyCampaignEndDate" type= "DateTimeType" />
<xs:element minOccurs= "0" name= "ReplacementItemGTIN" type= "GTINType" />
<xs:element minOccurs= "0" name= "ItemOrderInformation" type= "ShortTextType" />
<xs:element minOccurs= "0" name= "BeginDate" type= "DateTimeType" />
<xs:element minOccurs= "0" name= "EndDate" type= "DateTimeType" />
<xs:element minOccurs= "0" name= "ProductTypeEntry" type= "ProductTypeRecord" />
<xs:element minOccurs= "0" name= "ItemMinAmount" type= "Decimal5FractionDigitsType" />
<xs:element minOccurs= "0" name= "ItemMaxAmount" type= "Decimal5FractionDigitsType" />
<xs:element minOccurs= "0" name= "ItemMinStockSize" type= "Decimal5FractionDigitsType" />
<xs:element minOccurs= "0" name= "ItemMaxStockSize" type= "Decimal5FractionDigitsType" />

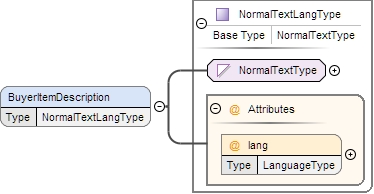

<xs:element minOccurs= "0" maxOccurs= "unbounded" name= "BuyerItemDescription" type= "NormalTextLangType" />
<xs:element minOccurs= "0" maxOccurs= "unbounded" name= "SellerItemDescription" type= "NormalTextLangType" />
<xs:element minOccurs= "0" name= "ItemPartyRetailPrice" type= "Decimal5FractionDigitsType" />
<xs:element minOccurs= "0" name= "ItemPartyRetailPriceVAT" type= "Decimal5FractionDigitsType" />

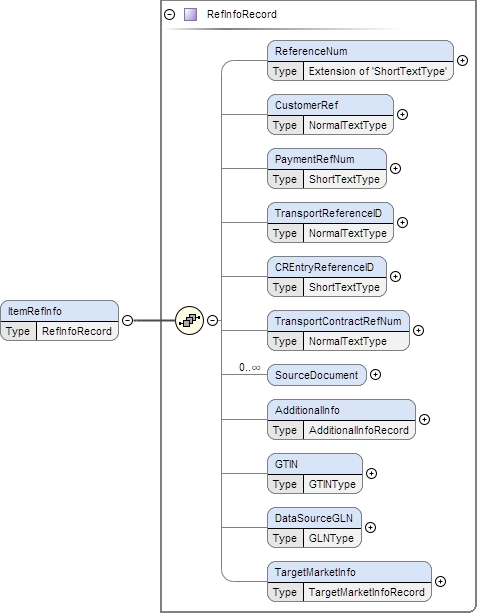

<xs:element minOccurs= "0" name= "ItemRefInfo" type= "RefInfoRecord" />

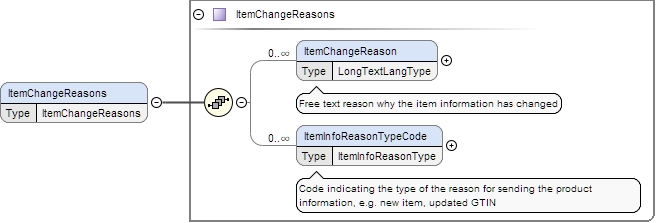

<xs:element minOccurs= "0" maxOccurs= "1" name= "ItemChangeReasons" type= "ItemChangeReasons" />
<xs:element minOccurs= "0" maxOccurs= "1" name= "ItemIsReplacableInEshop" type= "YesNoType" />
<xs:element minOccurs= "0" maxOccurs= "1" name= "ItemPriceTypes" type= "ItemPriceTypes" />
<xs:element minOccurs= "0" maxOccurs= "1" name= "PartyName" type= "NameTextType" >
<xs:annotation >
<xs:documentation > Partner name (branch-level) in sender’s ERP </xs:documentation>
</xs:annotation>
</xs:element>
<xs:element minOccurs= "0" maxOccurs= "1" name= "IsItemConsignmentArticle" type= "YesNoType" >
<xs:annotation >
<xs:documentation > Indication whether the trade item is a consignment article or not </xs:documentation>
</xs:annotation>
</xs:element>
<xs:element minOccurs= "0" maxOccurs= "1" name= "AdditionalInfo" type= "AdditionalInfoRecord" />
<xs:element minOccurs= "0" maxOccurs= "1" name= "ItemMinimumLifeSpanFromTimeOfArrival" type= "PositiveNumType" >
<xs:annotation >
<xs:documentation > The period of days before the expiration date of the trade item, based on arrival to a mutually agreed to point in the buyers distribution system </xs:documentation>
</xs:annotation>
</xs:element>

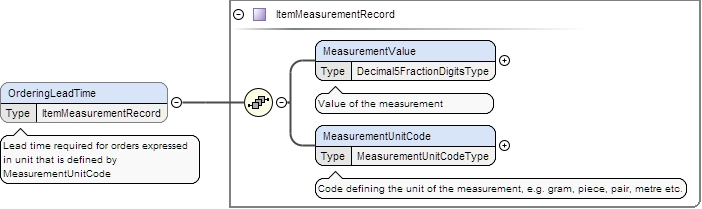

<xs:element minOccurs= "0" maxOccurs= "1" name= "OrderingLeadTime" type= "ItemMeasurementRecord" >
<xs:annotation >
<xs:documentation > Lead time required for orders expressed in unit that is defined by MeasurementUnitCode </xs:documentation>
</xs:annotation>
</xs:element>
<xs:element minOccurs= "0" maxOccurs= "1" name= "PurchaseManagerName" type= "ShortTextType" >
<xs:annotation >
<xs:documentation > Name of purchase manager </xs:documentation>
</xs:annotation>
</xs:element>

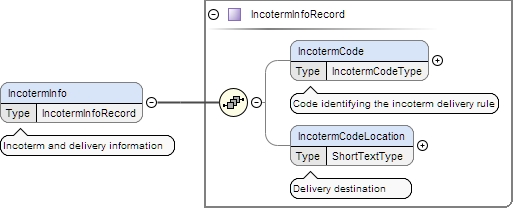

<xs:element minOccurs= "0" maxOccurs= "1" name= "IncotermInfo" type= "IncotermInfoRecord" >
<xs:annotation >
<xs:documentation > Incoterm and delivery information </xs:documentation>
</xs:annotation>
</xs:element>
</xs:sequence>
</xs:complexType>
